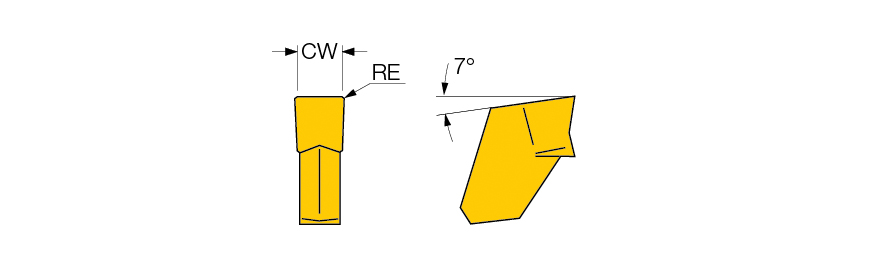

| Cutting Width (CW) | 4.05 mm | Max. Grooving Feed (fg(max)) | 0.3 mm/rev |
| Corner Radius (RE) | 0.24 mm | Min. Grooving Feed (fg(min)) | 0.1 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.05 mm | Chip Breaker Type | C |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | IC908 | Body Material | Carbide |
| Cutting Direction (HAND) | Neutral | Cutting Width Tolerance (+/-) (CWTOL) | 0.04 mm |
| Application | | Ext. Grooving | Int. Grooving | Parting | | Unit | M |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
Product Features

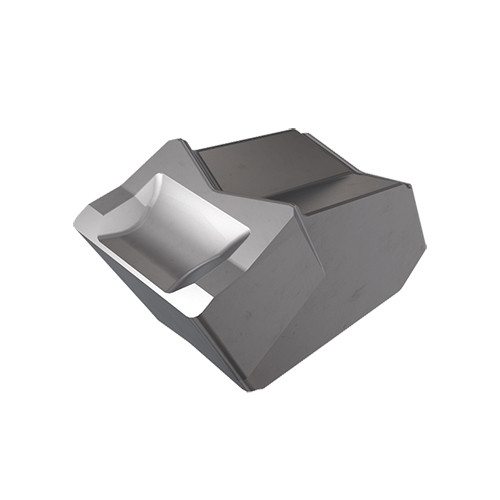

| Family Description | First choice for the parting of bars, hard materials and tough applications. Positive rake, single cavity with a negative land and shoulders, provides extra cutting-edge strength. Medium-to-high feeds. | FamilyName | GFN-C |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0040
Name
Parting Off Indexable Inserts
FamilyName
GFN-C
BrandName
Iscar
