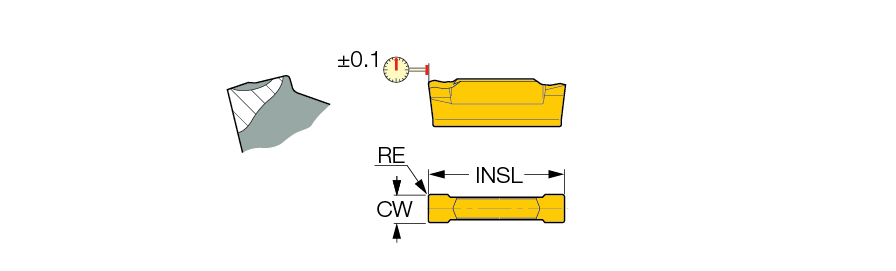

| Cutting Width (CW) | 3 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.3 mm | Max. Grooving Feed (fg(max)) | 0.2 mm/rev |
| Corner Radius Tolerance (+/-) (RETOL) | 0.03 mm | Min. Grooving Feed (fg(min)) | 0.08 mm/rev |
| Overall Length (OAL) | 15.8 mm | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | IC908 | Cutting Width Tolerance (+/-) (CWTOL) | 0.05 mm |
| Cutting Direction (HAND) | Right Hand | Unit | M |
| Application | | Ext. Grooving | Face Grooving | Face Grooving Along Shaft | Int. Face Grooving | Parting | |
Product Features
| Family Description | First choice for the parting of bars, hard materials and tough applications. A positive rake with a single cavity and a negative land. Provides extra cutting-edge strength. Used for medium-to-high feeds. | FamilyName | HGN-C |
| Remarks | No depth limit | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0029
Name
Parting Off Indexable Inserts
FamilyName
HGN-C
BrandName
Iscar
