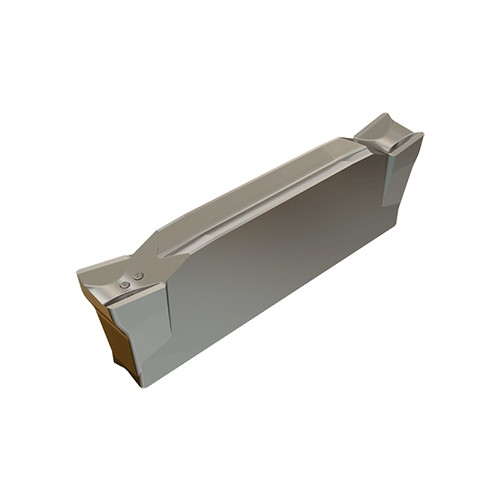

DGL 2202C-6D IC1030
First choice for the parting bars, hard materials and tough applications. A positive rake, single cavity with nagative land and shoulders, provides extra cutting edge strength. Medium-to-high feeds.

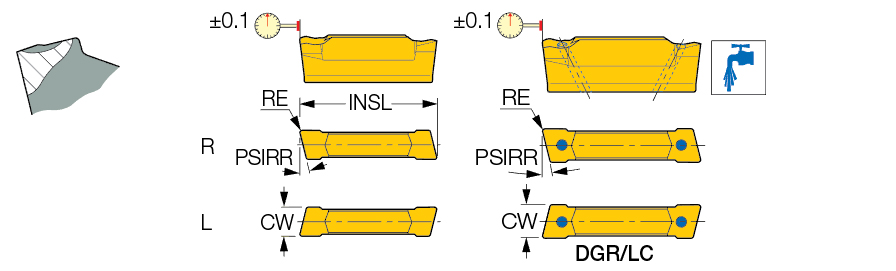

| Cutting Width (CW) | 2.2 mm | Application | | Parting | |
| Corner Radius (RE) | 0.2 mm | Applicable Material | | Steel | Stainless Steel | |
| Overall Length (OAL) | 20.8 mm | Max. Grooving Feed (fg(max)) | 0.12 mm/rev |
| Cutting Depth Maximum (CDX) | 18 mm | Min. Grooving Feed (fg(min)) | 0.04 mm/rev |
| Cutting Edge Material | Carbide | Tool Type | Parting & Grooving Inserts |
| Coating | TiAlN+TiN | Measurement Type | Metric |
| Grade | IC1030 | Body Material | Carbide |
| Cutting Direction (HAND) | Left Hand | Unit | M |
Product Features
| Family Description | First choice for the parting bars, hard materials and tough applications. A positive rake, single cavity with nagative land and shoulders, provides extra cutting edge strength. Medium-to-high feeds. | FamilyName | DGR/L-C DGRC/LC-C |
| Remarks | The feed values for grade IC20 should be decreased by 50%. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0062
Name
Parting Off Indexable Inserts
FamilyName
DGR/L-C DGRC/LC-C
BrandName
Iscar
