‎MM TRD16-M60-15P-3T06 IC908

Name: MM TRD16-M60-15P-3T06 IC908
Brand: MULTIMASTER
SKU: ISC3415194
Price: 4350.00 INR
Availability: InStock

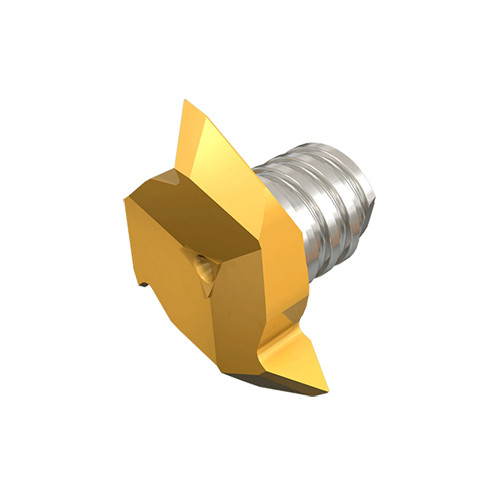

Interchangeable solid carbide milling heads for 60° partial profile thread milling

Item # ISC3415194

Brand: Iscar

Mfr#: 3415194

Thread Standard	THFT \|	Tool Type	Solid carbide thread mills
Connection Thread Nominal Size Machine Side (THSZMS)	T06	Measurement Type	Metric
Coating	TiAlN	Overall Length (OAL)	9.56 mm
Grade	IC908	Body Material	Carbide
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|	Connection Code Machine Side (CCMS)	MultiMaster
Application	\| External Thread Milling \| Internal Thread Milling \|	Thread Form Type (THFT)	VP60
Standard	ISO 68, DIN 13	Unit	M
Cutting Edge Material	Carbide

Product Features

Family Description	Interchangeable solid carbide milling heads for 60° partial profile thread milling	COO	Israel
Remarks	‎For ISO metric thread (ISO 68, DIN13, ANSI B 1.13M-1983) For Clamping keys (should be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. DIN13 , ISO 68-1, ISO 965 (1&2) - Internal tolerance: 6H, External tolerance: 6g ANSI/ASME B1.1 - Internal tolerance: 2B, External tolerance: 2A

Weight per item

0.0140
