PENTA 34F247-0.20-22R IC908
Pentagonal inserts for face grooving and recessing up to 5 mm depth of cut at a minimum 22 mm diameter.

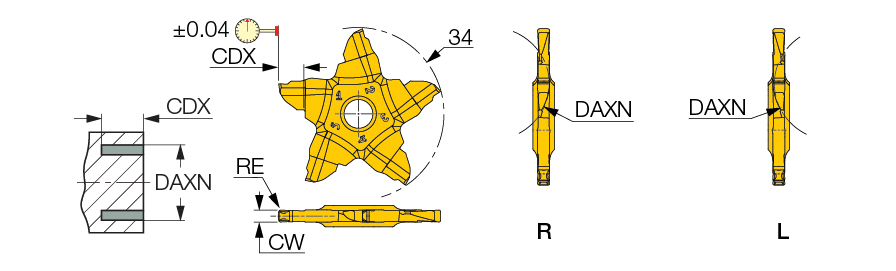

| Cutting Width (CW) | 2.47 mm | Axial Groove Outside Diameter Minimum (DAXN) | 22 mm |
| Corner Radius (RE) | 0.2 mm | Max. Face Grooving Feed (ffg(max)) | 0.12 mm/rev |
| Cutting Depth Maximum (CDX) | 5 mm | Min. Face Grooving Feed (ffg(min)) | 0.08 mm/rev |
| Cutting Edge Material | Carbide | Measurement Type | Metric |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Grade | IC908 | Body Material | Carbide |
| Application | | Face Grooving | | Unit | M |
| Tool Type | Face Turn-Groove Inserts |
Product Features
| Family Description | Pentagonal inserts for face grooving and recessing up to 5 mm depth of cut at a minimum 22 mm diameter. | FamilyName | PENTA 34F-R/L |
| Remarks | For parting and grooving range, click on More Info. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0238
Name
Face Groove/Turn Indexable Inserts
FamilyName
PENTA 34F-R/L
BrandName
Iscar
