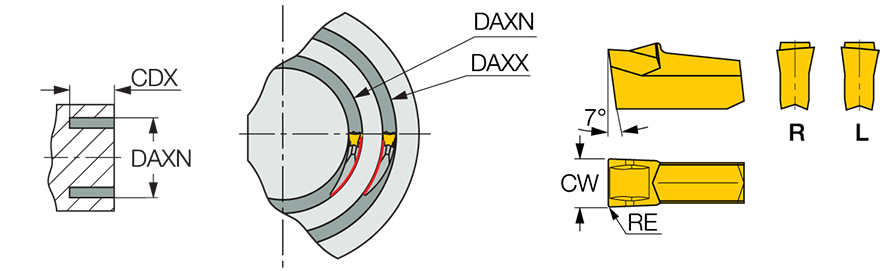

| Cutting Width (CW) | 3 mm | Axial Groove Outside Diameter Minimum (DAXN) | 30 mm |
| Corner Radius (RE) | 0.3 mm | Max. Face Grooving Feed (ffg(max)) | 0.15 mm/rev |
| Cutting Edge Material | Carbide | Min. Face Grooving Feed (ffg(min)) | 0.03 mm/rev |
| Applicable Material | | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Measurement Type | Metric |
| Grade | IC20 | Coating | Uncoated |
| Application | | Face Grooving | Face Grooving Along Shaft | | Body Material | Carbide |
| Tool Type | Face Turn-Groove Inserts | Unit | M |
| Axial Groove Outside Diameter Maximum (DAXX) | 55 mm |
Product Features
| Family Description | SELF-GRIP, face grooving inserts. | FamilyName | GFF-R/L |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0025
Name

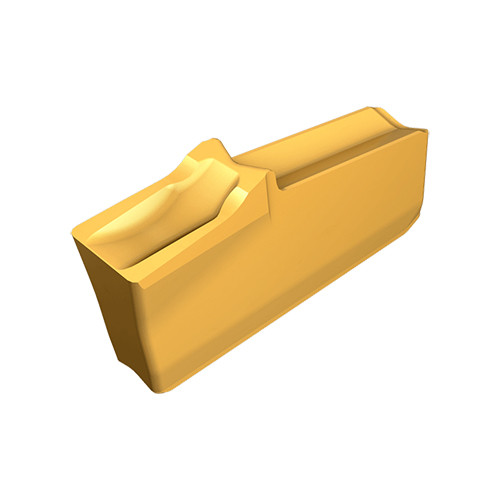

Face Groove/Turn Indexable Inserts
FamilyName
GFF-R/L
BrandName
Iscar
