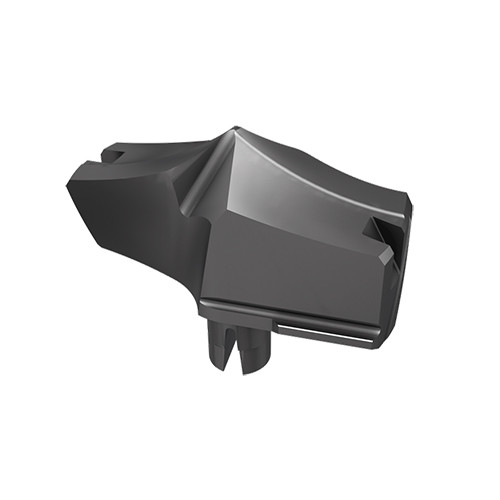

HFP 381-SPADE IQ IC908
Exchangeable DFN drill heads for carbon and alloy steel (ISO P) and cast iron (ISO K). The drill head is designed with a honed cutting edge, available in increments of 0.5 mm.

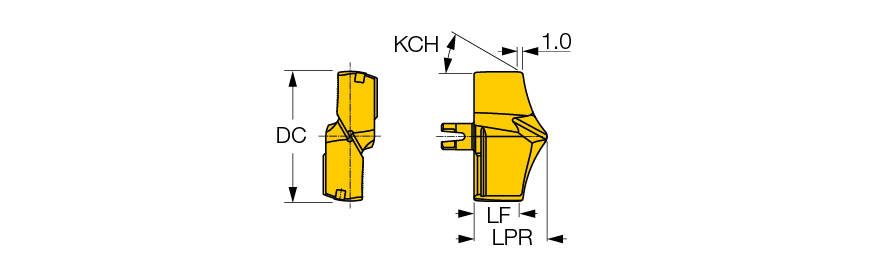

| Cutting Diameter (DC) | 38.1 mm | Insert Thickness (S) | 22 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Point Length (PL) | 8.2 mm |
| Application | | Drilling | | Point Angle (SIG) | 137 Degrees |
| Grade | IC908 | Coating | TiAlN |
| Tool Type | Drilling Heads | Corner Chamfer Width (CHW) | 1 mm |
| Insert Seat Size Code (SSC) | 38.0 | Chamfer Angle | 30 Degrees |
| Functional Length (LF) | 13.8 mm | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
| Measurement Type | Metric |
Product Features
| Family Description | Exchangeable DFN drill heads for carbon and alloy steel (ISO P) and cast iron (ISO K). The drill head is designed with a honed cutting edge, available in increments of 0.5 mm. | COO | Israel |
| Remarks | Advance self centering, and high surface finish Intermediate sizes can be supplied on request |
Shipping Info
Weight per item
0.0990
