DR2.24>2.37-6.1-2-10/11CA

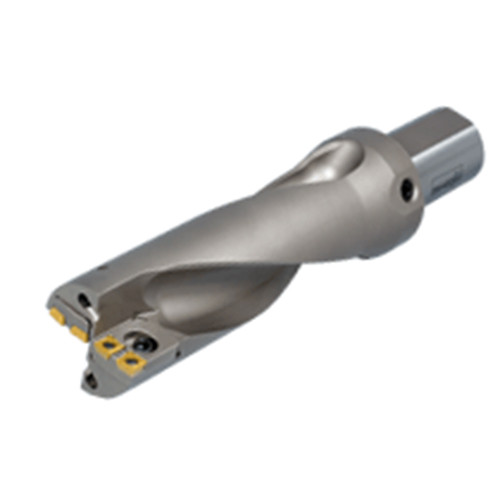

Large diameter drills with cartridges. Each drill is supplied with several shim plates. By mounting these plates, the drill's diameter can be changed.

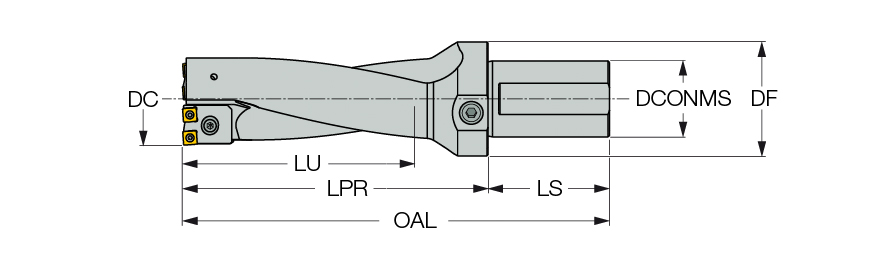

| Cutting Diameter (DC) | 2.24″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 6.1″ | Cutting Diameter Minimum (DCN) | 2.24″ |
| Application | | Drilling | | Cutting Diameter Maximum (DCX) | 2.48″ |
| Connection Diameter Machine Side (DCONMS) | 2″ | Flange Diameter (DF) | 2.52″ |
| Tool Type | indexable head drills | Measurement Type | Inch |
| Protruding Length (LPR) | 7.9″ | Body Material | Steel |
| Shank Length (LS) | 3.15″ | Decimal Equivalent | 2.24″ |
| Functional Length (LF) | 7.815″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 11.05″ | Unit | I |
Product Features
| Family Description | Large diameter drills with cartridges. Each drill is supplied with several shim plates. By mounting these plates, the drill's diameter can be changed. | COO | Korea |

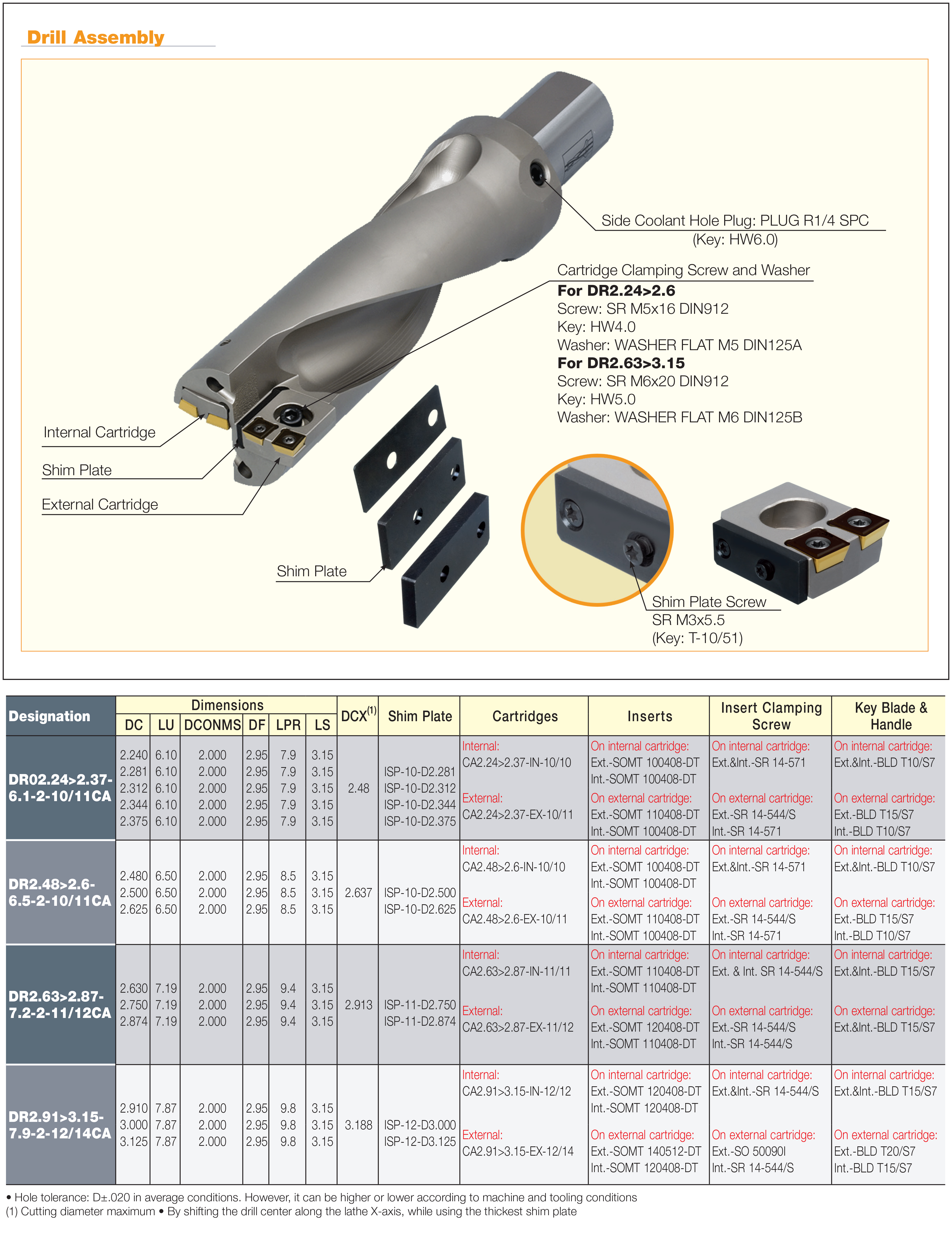

| Remarks | Hole tolerance: D±.020 in average conditions applied. It can be higher or lower according to machine and tooling conditions For each drill diameter assembly parts, click on More Info. |
Shipping Info
Weight per item
8.4437
