DSC-EA 28.71-31.00

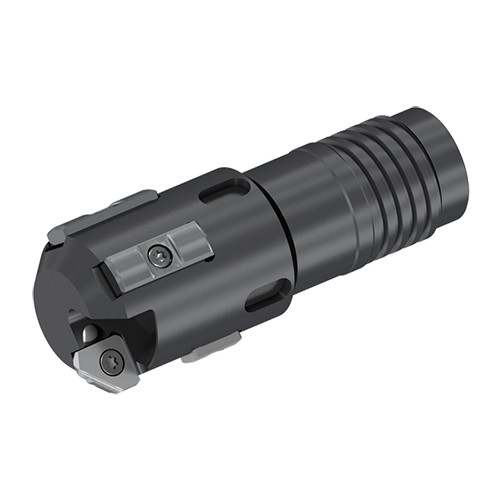

Deep single tube counterbores with through hole, external 4 start thread Connection and adjustable diameter. Each item represents a diameter range. For a specific head diameter, an order form should be filled out.

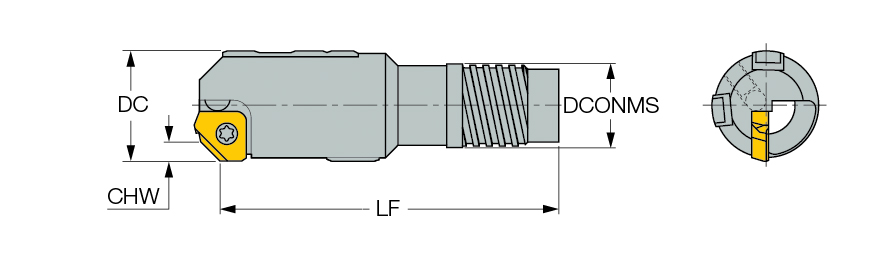

| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 28.71 mm |
| Connection Diameter Machine Side (DCONMS) | 23.5 mm | Cutting Diameter Maximum (DCX) | 31 mm |
| Overall Length (OAL) | 75 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
| Connection Thread Size (Ts) | TS-I8 | Unit | M |
Product Features
| Family Description | Deep single tube counterbores with through hole, external 4 start thread Connection and adjustable diameter. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | Japan |
| Remarks | For user guide and related spare parts, click on More Info. |
