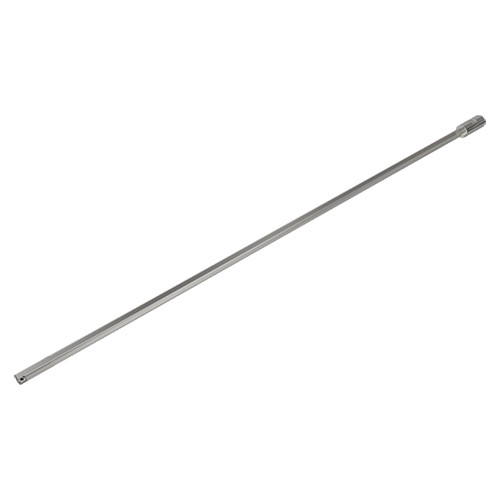

GD-DHL 12.00X800-22
Gundrills carrying the LOGT indexable inserts, with 2 chip splitting cutting edges and a wiper for high hole surface quality and high feed.
| Cutting Diameter (DC) | 12 mm | Overall Length (OAL) | 801.8 mm |
| Usable Length (LU) | 733.8 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Gundrills | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Master Insert Identification (MIID) | LOGT 06.. |
| Tool Type | Deep Hole / Gun Drill | Body Material | Steel |
| Shank Length (LS) | 50 mm | Unit | M |
Product Features
| Family Description | Gundrills carrying the LOGT indexable inserts, with 2 chip splitting cutting edges and a wiper for high hole surface quality and high feed. | COO | Japan |
| Remarks | For inquiry form, pad and driver selection, click on More Info Note: Gundrills can be supplied with up to 2400 mm length on request. Inserts and guide pads to be ordered separately (not included with the tools). Preventative measures: Do NOT operate the deep hole drill at full speed before engaging the guide hole. Enter the guide hole slowly at a speed of 50 - 100 rpm. |
Shipping Info
Weight per item
0.6850
