DSTR-EC 184.00-195.99
Single tube trepanning drills with outer 4-start thread connection, cartridges and adjustable diameter (100-328mm dia.)

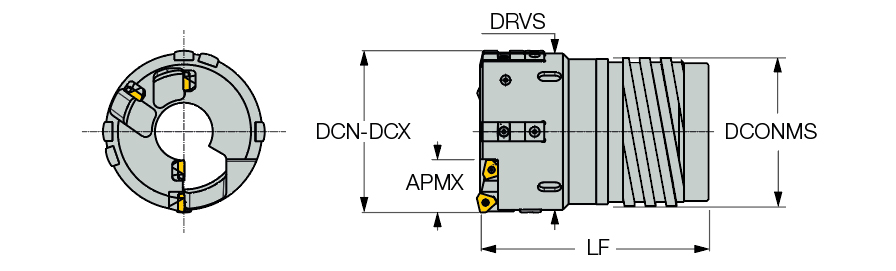

| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 184 mm |
| Connection Diameter Machine Side (DCONMS) | 173 mm | Cutting Diameter Maximum (DCX) | 195.99 mm |
| Functional Length (LF) | 249 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Body Material | Steel |
| Connection Thread Size (Ts) | TS-I30 | Unit | M |
Product Features
| Family Description | Single tube trepanning drills with outer 4-start thread connection, cartridges and adjustable diameter (100-328mm dia.) | COO | Japan |

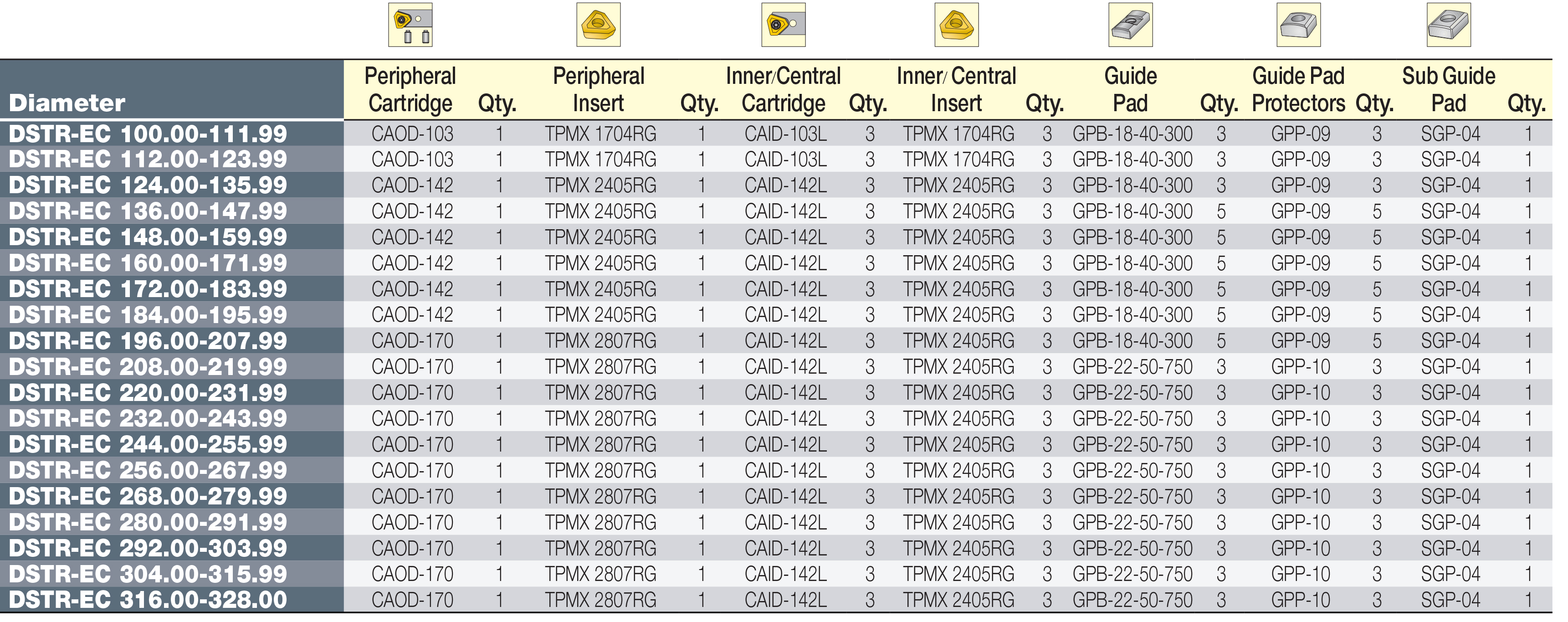

| Remarks | For spare parts and insert information, click More Info Ordering example: DSTR-EC 120.55 |
