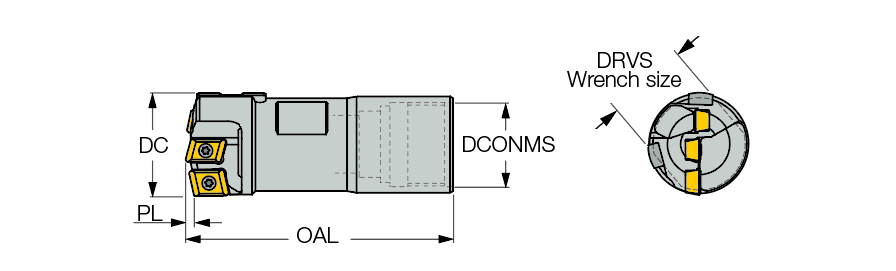

| Application | | Deep Drilling | | Cutting Diameter Minimum (DCN) | 25 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Cutting Diameter Maximum (DCX) | 26.99 mm |
| Tool Type | Deep Hole / Gun Drill | Measurement Type | Metric |
| Overall Length (OAL) | 73 mm | Body Material | Steel |
| Coolant Supply Property (CSP) | Coolant Thru | Unit | M |
| Connection Thread Size (Ts) | TS-010 |
Product Features

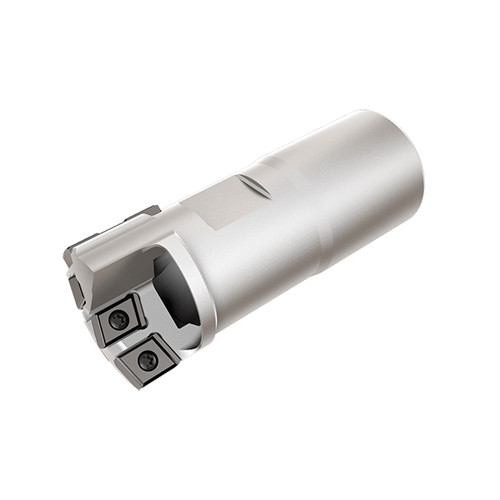

| Family Description | Deep single tube drills with internal Single-Start Thread Connection. Each item represents a diameter range. For a specific head diameter, an order form should be filled out. | COO | Japan |
| Remarks | Inserts and guide pads to be ordered separately Ordering example: DSD-IF 43.10-FB For head clamping wrench sizes, quotation form and user guide, click on More Info |
