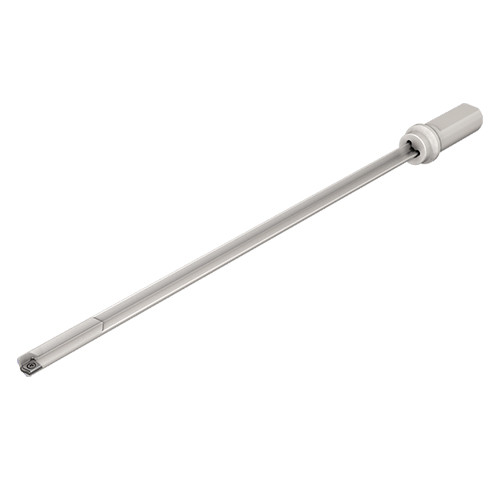

GD-DH 10.50-25D-M20-06
Gundrills carrying the ZSGT indexable inserts, with single chip splitting cutting edge and a wiper for high hole surface quality. The drills are available in 15, 20 and 25 drilling length to diameter ratios.

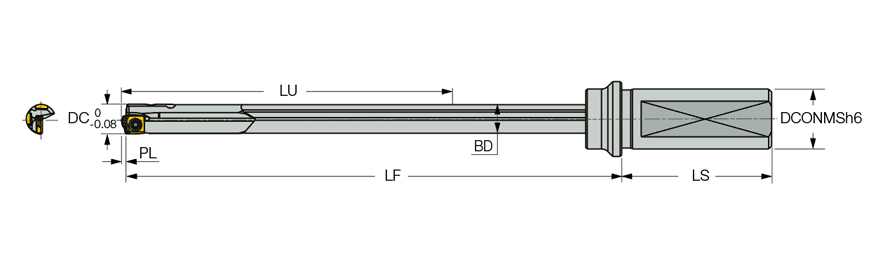

| Cutting Diameter (DC) | 10.5 mm | Functional Length (LF) | 303 mm |
| Usable Length (LU) | 276.8 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Gundrills | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Body Material | Steel |
| Tool Type | Deep Hole / Gun Drill | Unit | M |
| Shank Length (LS) | 50 mm |
Product Features
| Family Description | Gundrills carrying the ZSGT indexable inserts, with single chip splitting cutting edge and a wiper for high hole surface quality. The drills are available in 15, 20 and 25 drilling length to diameter ratios. | COO | Japan |

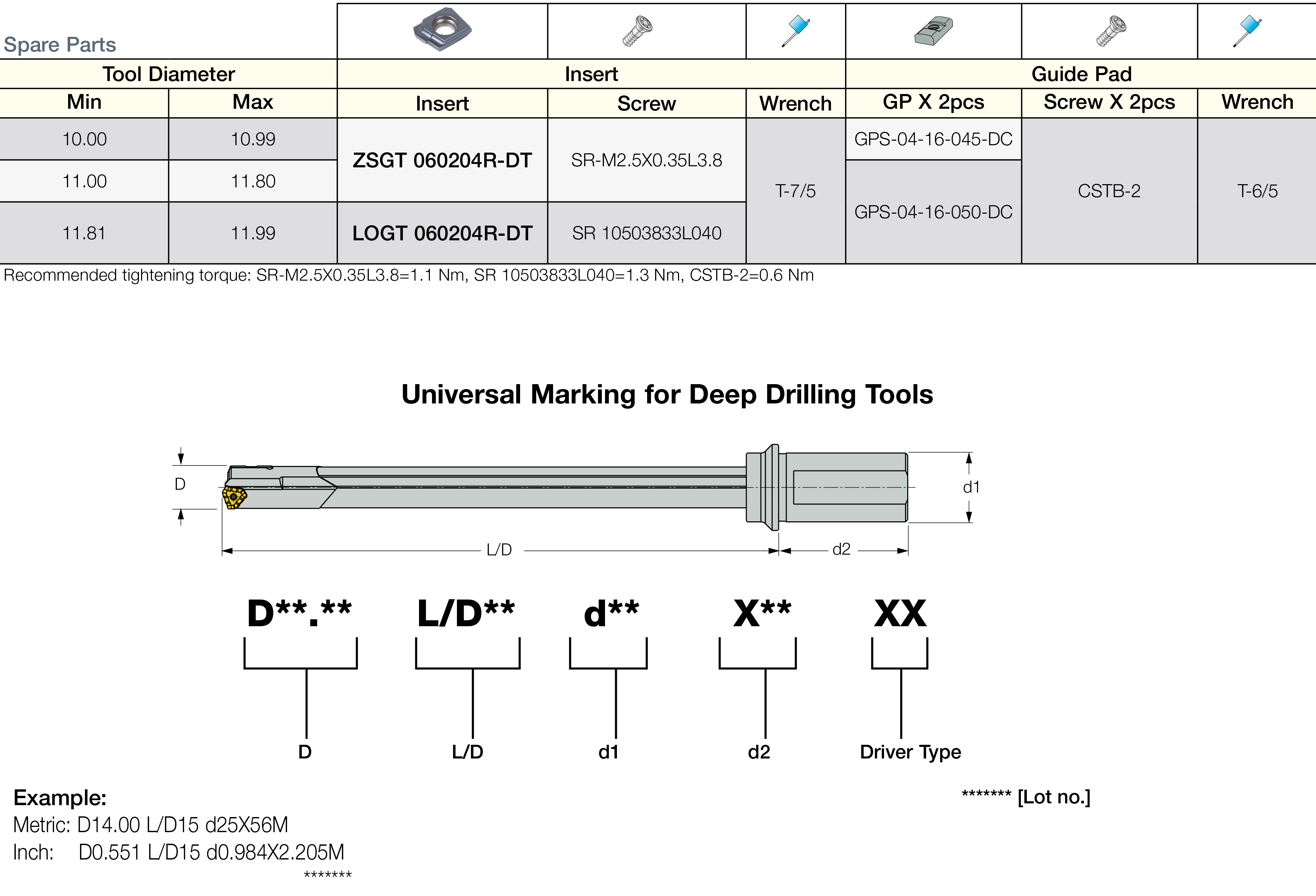

| Remarks | For spare parts, driver selection and user guide, click on More Info Note: Gundrills supplied with up to 1650 mm length on request. Inserts and guide pads to be ordered separately (not included with the tools). Preventative measures: Do NOT operate the deep hole drill at full speed before engaging the guide hole. Enter the guide hole slowly at a speed of 50 - 100 rpm. |
Shipping Info
Weight per item
0.3380
