MNC1625-488-150-0965-10-3

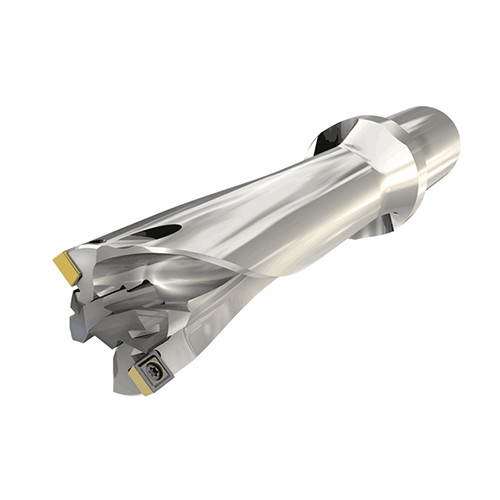

Large diameter full effective indexable drills with pilot drilling head and one flat shanks. Drilling depth 3xD. High drilling rates, high accuracy and surface finish.

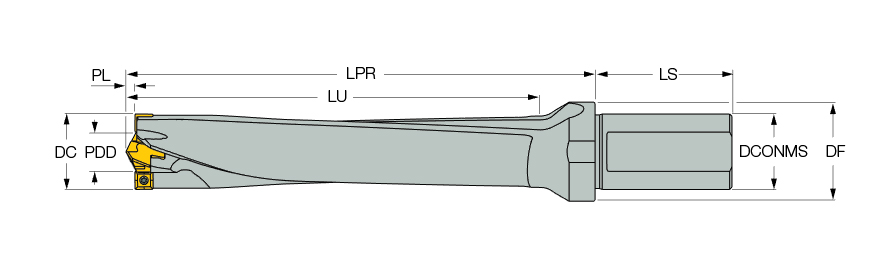

| Cutting Diameter (DC) | 1-5/8″ | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 5.065″ | Flange Diameter (DF) | 1.968″ |
| Application | | Drilling | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ | Master Insert Identification (MIID) | SOGT 100408-W |
| Tool Type | Indexable Insert Drills | Body Material | Steel |
| Protruding Length (LPR) | 6.77″ | Decimal Equivalent | 1.625″ |
| Shank Length (LS) | 2.67″ | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 9.44″ | Unit | I |
Product Features
| Family Description | Large diameter full effective indexable drills with pilot drilling head and one flat shanks. Drilling depth 3xD. High drilling rates, high accuracy and surface finish. | COO | Israel |
| Remarks | Hole tolerance: D+.004/-.002 in average conditions. However, it can be higher or lower according to machine and tooling conditions Intermediate sizes are available on request |
Shipping Info
Weight per item
3.7567
