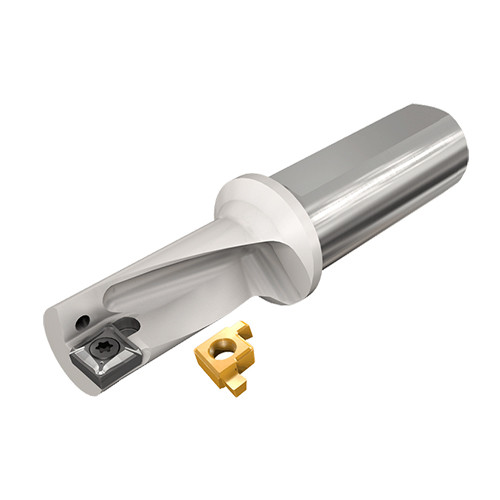

DRG-MF-20R-2.25D-25A-10
Multifunction drilling, boring, facing, external turning and internal grooving tools.
| Cutting Diameter (DC) | 20 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 45 mm | Measurement Type | Metric |
| Application | | Drilling Ext Face Int. Turning | Ext. Grooving | Ext. Grooving & Turning | Int. Groove & Turn | Int. Grooving | | Length Group | 2xD |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Master Insert Identification (MIID) | XCMT 10... |
| Protruding Length (LPR) | 55 mm | Body Material | Steel |
| Shank Length (LS) | 56 mm | Unit | M |
| Overall Length (OAL) | 111 mm |
Product Features
| Family Description | Multifunction drilling, boring, facing, external turning and internal grooving tools. | COO | Korea |

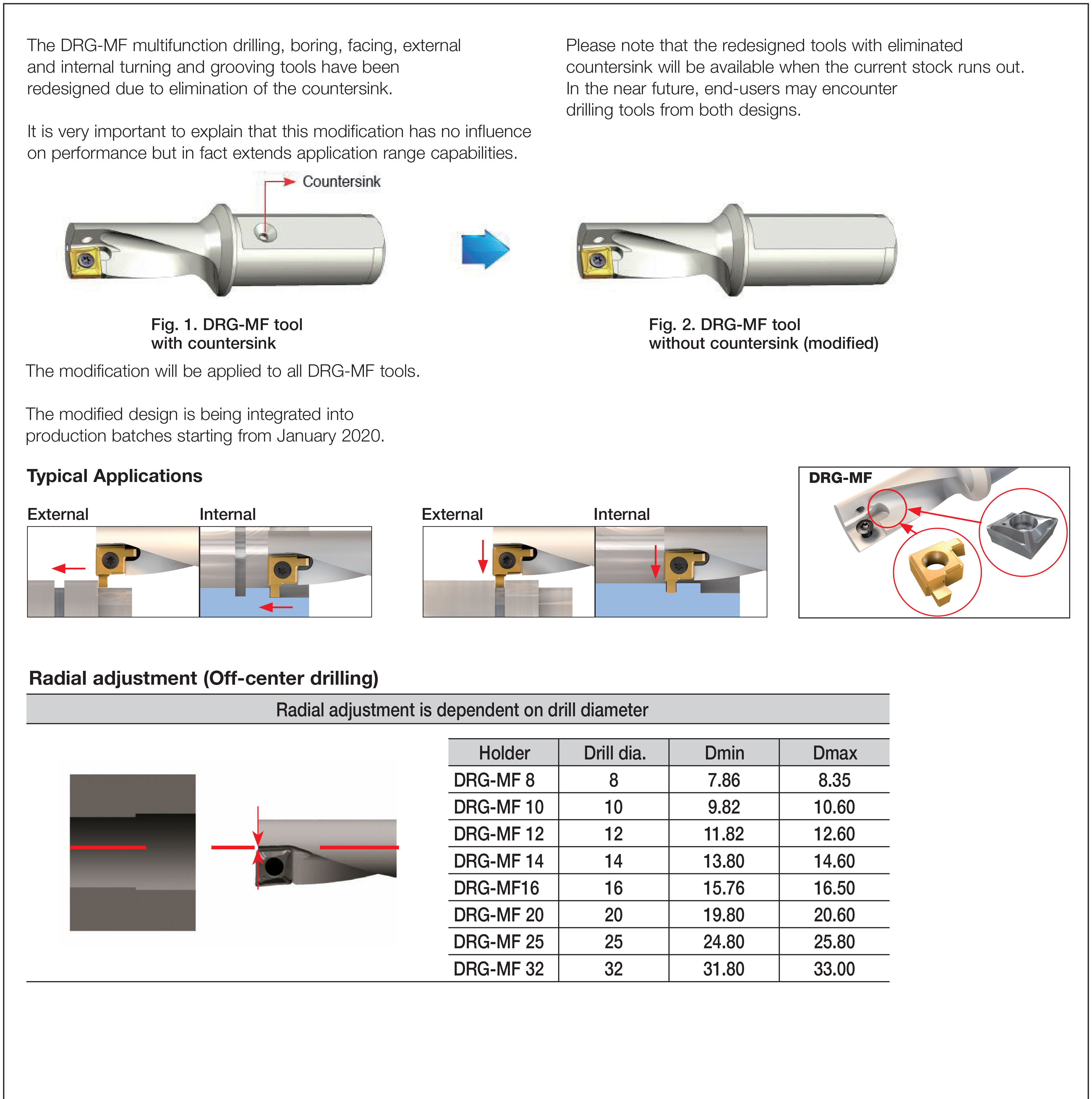

| Remarks | In non-rotating applications, hole diameter can be adjusted within the specified range by shifting drill's center line along machine's X-axis The tools feature internal coolant holes. |
Shipping Info
Weight per item
0.3350
