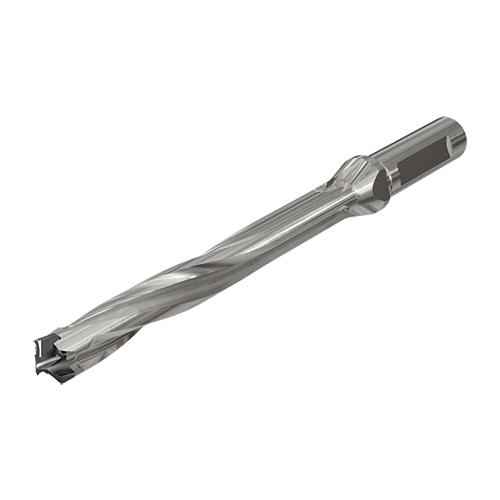

D3N 240-192-32A-8D
Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 8xD
| Cutting Diameter (DC) | 24 mm | Overall Length (OAL) | 301.5 mm |
| Usable Length (LU) | 197.21 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Master Insert Identification (MIID) | H3P 240IQ |
| Insert Seat Size Code (SSC) | 24 | Point Length (PL) | 5.21 mm |
| Cutting Diameter Minimum (DCN) | 24 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 24.9 mm | Flange Diameter (DF) | 42 mm |
| Protruding Length (LPR) | 241.5 mm | Unit | M |
Product Features
| Family Description | Exchangeable head 3 flute drills with coolant holes and one flat shank, drilling depth 8xD | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.8750
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
