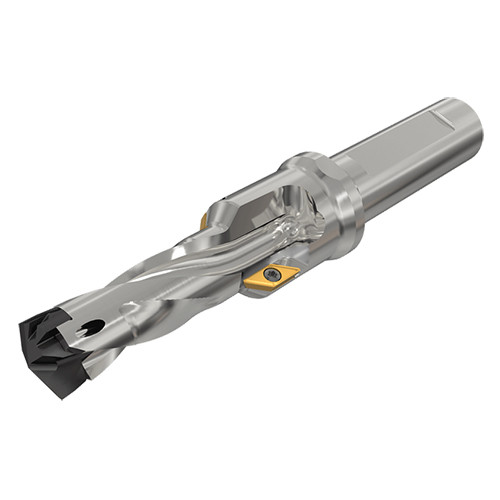

DCNT 175-042-20A-M20

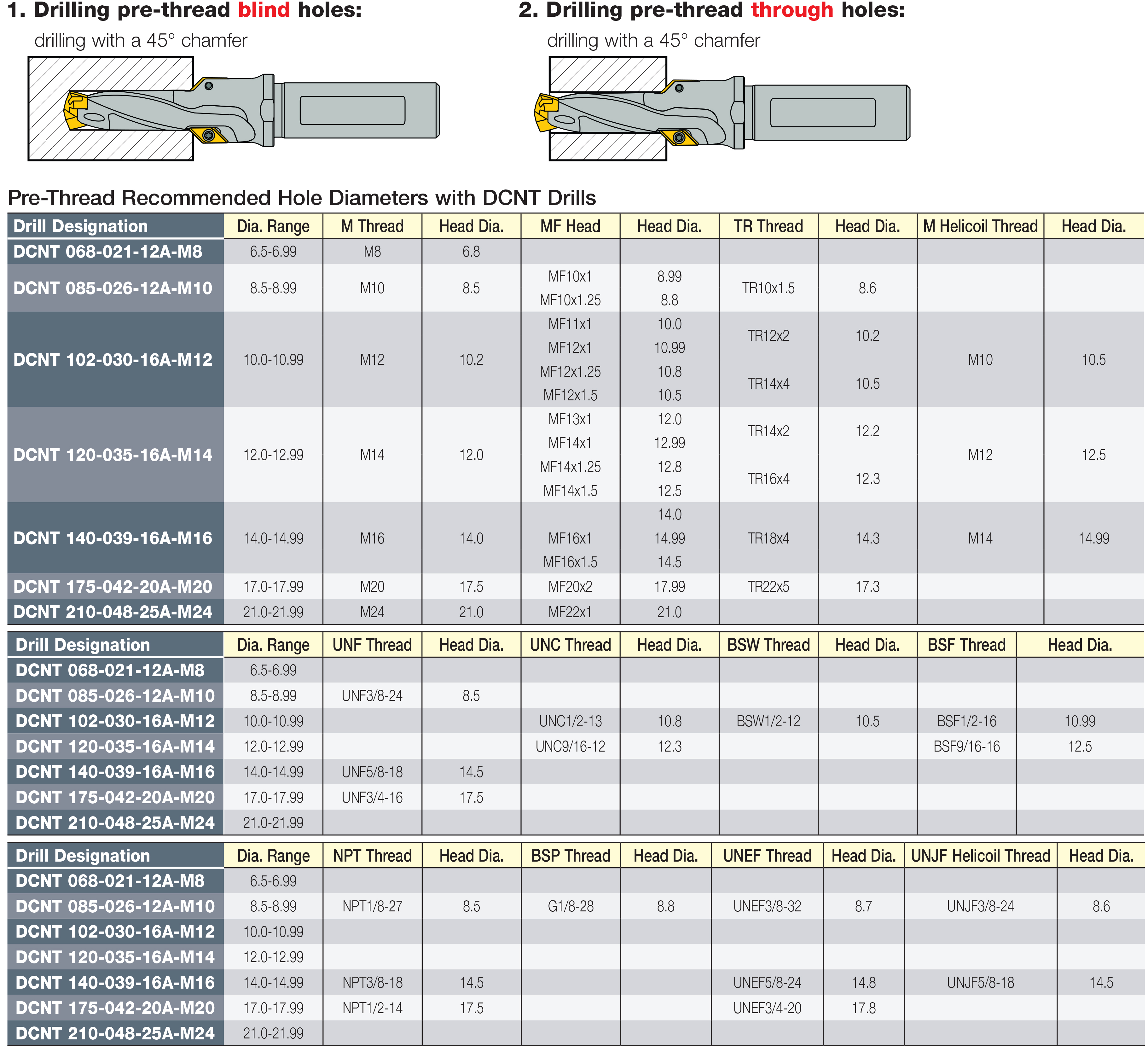

Exchangeable head drills with chamfering inserts mainly for pre-thread holes

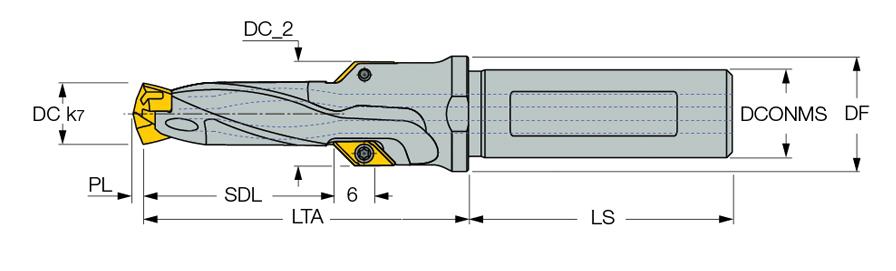

| Cutting Diameter (DC) | 17.5 mm | Shank Length (LS) | 50 mm |
| Cutting Diameter 2 (DC_2) | 24 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Usable Length (LU) | 50.7 mm | Measurement Type | Metric |
| Application | | Chamfering | Drilling | | Master Insert Identification (MIID) | ICP 175 |
| Tool Type | Chamfering drills | Point Length (PL) | 2.7 mm |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Body Material | Steel |
| Insert Seat Size Code (SSC) | 17.0 | Flange Diameter (DF) | 25 mm |
| Cutting Diameter Minimum (DCN) | 17 mm | Step Diameter Length (SDL) | 42 mm |
| Cutting Diameter Maximum (DCX) | 17.9 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 122 mm | Unit | M |
Product Features
| Family Description | Exchangeable head drills with chamfering inserts mainly for pre-thread holes | COO | Israel |
| Remarks | Hole tolerance: D+0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.2890
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body
