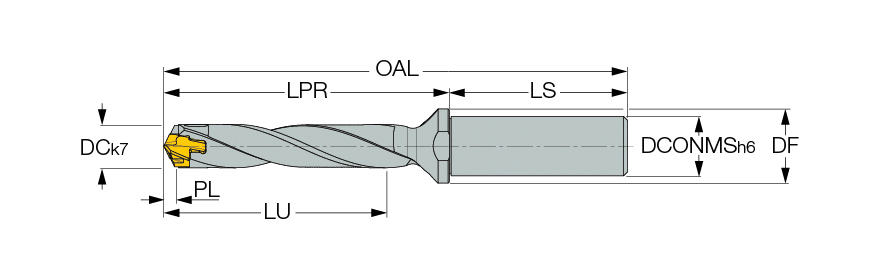

| Cutting Diameter (DC) | 29 mm | Overall Length (OAL) | 250.8 mm |
| Usable Length (LU) | 149.43 mm | Shank Length (LS) | 60 mm |
| Shank Type | Round | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Drilling | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | ICP 290 |
| Connection Diameter Machine Side (DCONMS) | 32 mm | Point Length (PL) | 4.43 mm |
| Insert Seat Size Code (SSC) | 29.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 29 mm | Flange Diameter (DF) | 42 mm |
| Cutting Diameter Maximum (DCX) | 29.99 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Protruding Length (LPR) | 190.8 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 185.52 mm | Unit | M |
Product Features

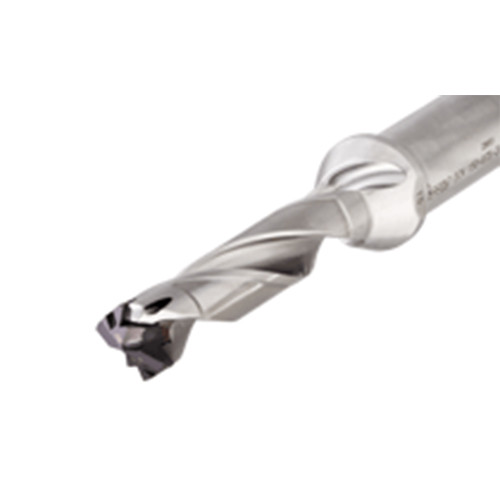

| Family Description | SUMOCHAM 5xD drills with exchangeable heads, cylindrical shanks and internal coolant holes. Feature 4 standard drilling head types for drilling on 4 different material groups. | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
1.1620
Related Documentation
Do not mount smaller drilling heads than specificed range for drill body.
