DCM 240-192-25A-8D

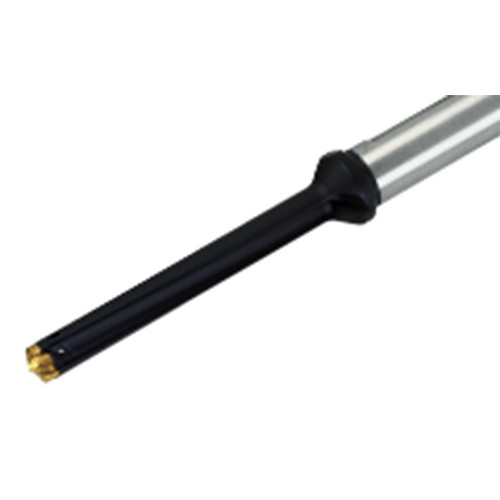

Drill body with exchangeable heads, internal coolant holes and one flat shank. Drilling depth: 8xD
| Usable Length (LU) | 192 mm | Shank Length (LS) | 56 mm |
| Application | | Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | Indexable Insert Drills | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Master Insert Identification (MIID) | IDI 240-SG |
| Insert Seat Size Code (SSC) | 24.0 | Point Length (PL) | 4.37 mm |
| Cutting Diameter Minimum (DCN) | 24 mm | Body Material | Steel |
| Cutting Diameter Maximum (DCX) | 24.9 mm | Flange Diameter (DF) | 32 mm |
| Protruding Length (LPR) | 224.5 mm | Body Diameter Reduced (BDRED) | 32 mm |
| Functional Length (LF) | 220.13 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Overall Length (OAL) | 280.5 mm | Unit | M |
Product Features
| Family Description | Drill body with exchangeable heads, internal coolant holes and one flat shank. Drilling depth: 8xD | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body Drill tolerance: k7 |
Shipping Info
Weight per item
0.6970
Related Documentation
Do not monut smaller drilling heads than specificed range for drill body. Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
