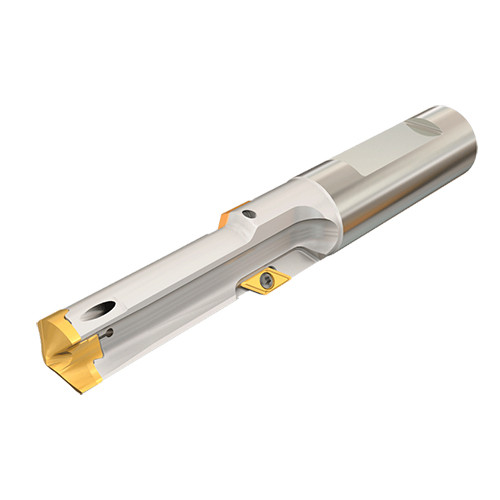

DCT 210-048-25B-M24
CHAMDRILL exchangeable head drills with chamfering inserts mainly for pre-thread holes

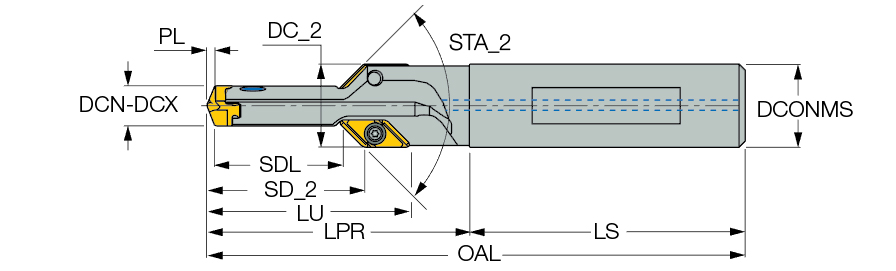

| Cutting Diameter (DC) | 21 mm | Shank Length (LS) | 56 mm |
| Usable Length (LU) | 60.3 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Chamfering | Drilling | | Measurement Type | Metric |
| Tool Type | Chamfering drills | Master Insert Identification (MIID) | IDI 210 |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Point Length (PL) | 3.82 mm |
| Insert Seat Size Code (SSC) | 21.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 21 mm | Body Diameter (BD) | 25.5 mm |
| Cutting Diameter Maximum (DCX) | 21.9 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Protruding Length (LPR) | 72.8 mm | Unit | M |
| Overall Length (OAL) | 128.82 mm |
Product Features
| Family Description | CHAMDRILL exchangeable head drills with chamfering inserts mainly for pre-thread holes | COO | Israel |
| Remarks | Hole tolerance: D+0.05 in average conditions. However, it can be higher or lower according to machine and tooling conditions Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.4650
