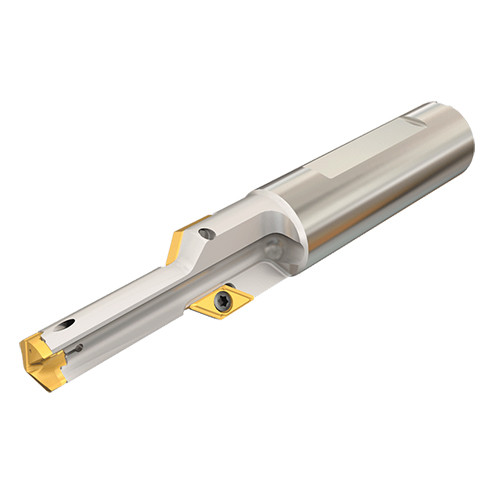

DCT 0366-106-063B-7/16UNC
CHAMDRILL exchangeable head drills with chamfering inserts mainly for pre-thread holes.
| Cutting Diameter (DC) | 0.366″ | Overall Length (OAL) | 3.79″ |
| Usable Length (LU) | 1-1/2″ | Shank Length (LS) | 1.89″ |
| Application | | Chamfering | Drilling | | Coolant Supply Property (CSP) | Coolant Thru |
| Tool Type | indexable head drills | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 5/8″ | Point Length (PL) | 0.065″ |
| Insert Seat Size Code (SSC) | 9.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 0.358″ | Decimal Equivalent | 0.366″ |
| Cutting Diameter Maximum (DCX) | 0.392″ | Body Diameter (BD) | 0.63″ |
| Protruding Length (LPR) | 1.9″ | Unit | I |
Product Features
| Family Description | CHAMDRILL exchangeable head drills with chamfering inserts mainly for pre-thread holes. | COO | Israel |
| Remarks | Hole tolerance: D+.002 in average conditions. However, it can be higher or lower according to machine and tooling conditions Do not mount smaller drilling heads other than the specified range of the drill body |
Shipping Info
Weight per item
0.3660
