DCM 150-052-15B-3.5D

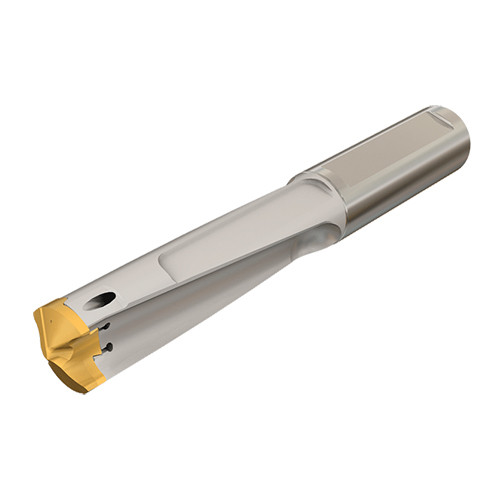

UNICHAMDRILL exchangeable head drills without flange and with flat shank, drilling depth 3.5xD, suitable for chamfering holder

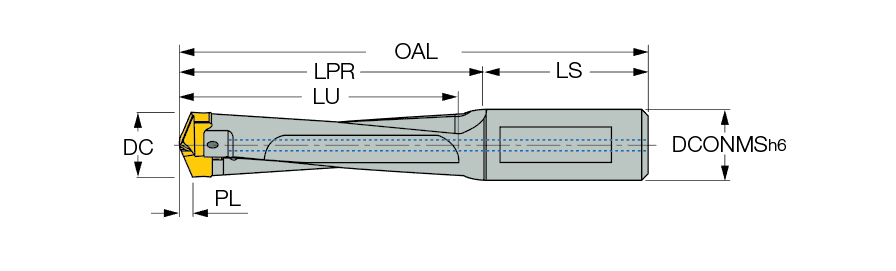

| Usable Length (LU) | 52 mm | Overall Length (OAL) | 108.1 mm |
| Application | | Chamfering | Drilling | | Shank Length (LS) | 45 mm |
| Tool Type | Indexable Insert Drills | Coolant Supply Property (CSP) | Coolant Thru |
| Connection Diameter Machine Side (DCONMS) | 15 mm | Measurement Type | Metric |
| Insert Seat Size Code (SSC) | 15.0 | Master Insert Identification (MIID) | IDI 150 |
| Cutting Diameter Minimum (DCN) | 15 mm | Point Length (PL) | 2.718 mm |
| Cutting Diameter Maximum (DCX) | 15.9 mm | Body Material | Steel |
| Protruding Length (LPR) | 63 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 60.37 mm | Unit | M |
Product Features
| Family Description | UNICHAMDRILL exchangeable head drills without flange and with flat shank, drilling depth 3.5xD, suitable for chamfering holder | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body Drill tolerance: k7 |
Shipping Info
Weight per item
0.1450
Related Documentation
Do not monut smaller drilling heads than specificed range for drill body. Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions. Drill design without a flange. To be used with standard CHAMRING chamfering ring.
