DCM 180-054-25A-3D

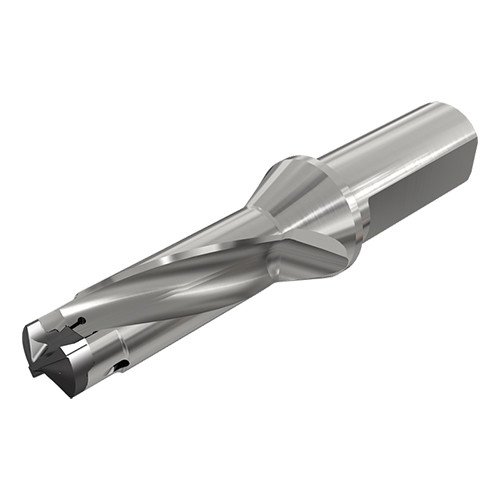

Drill body with exchangeable heads, internal coolant holes and one flat shank. Drilling depth: 3xD

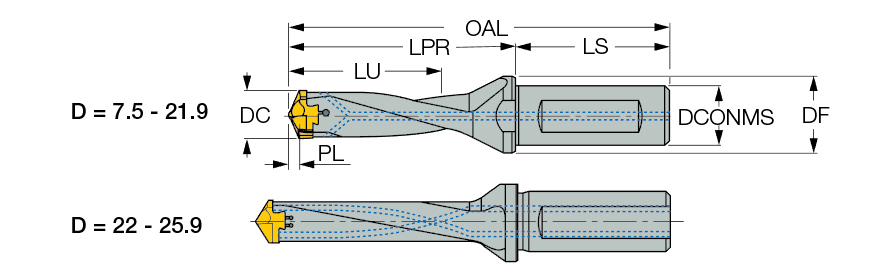

| Cutting Diameter (DC) | 18 mm | Shank Length (LS) | 56 mm |
| Usable Length (LU) | 54 mm | Coolant Supply Property (CSP) | Coolant Thru |
| Application | | Chamfering | Drilling | | Measurement Type | Metric |
| Tool Type | Indexable Insert Drills | Master Insert Identification (MIID) | IDI 180-SG |
| Connection Diameter Machine Side (DCONMS) | 25 mm | Point Length (PL) | 3.28 mm |
| Insert Seat Size Code (SSC) | 18.0 | Body Material | Steel |
| Cutting Diameter Minimum (DCN) | 18 mm | Flange Diameter (DF) | 32 mm |
| Cutting Diameter Maximum (DCX) | 18.9 mm | Body Diameter Reduced (BDRED) | 32 mm |
| Protruding Length (LPR) | 78.3 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Functional Length (LF) | 75.02 mm | Unit | M |
| Overall Length (OAL) | 134.3 mm |
Product Features
| Family Description | Drill body with exchangeable heads, internal coolant holes and one flat shank. Drilling depth: 3xD | COO | Israel |
| Remarks | Do not mount smaller drilling heads other than the specified range of the drill body Drill tolerance: k7 |
Shipping Info
Weight per item
0.3830
Related Documentation
Do not monut smaller drilling heads than specificed range for drill body. Hole tolerance in average conditions, however, it can be higher or lower according to machine and tooling conditions.
