ESB-A4 05 3/38C06M80 IC903

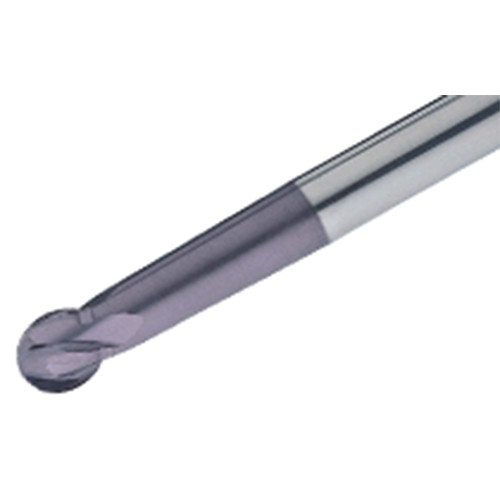

4 flute, 30° helix spherical long solid carbide ball nose endmills for materials up to 65 HRC.

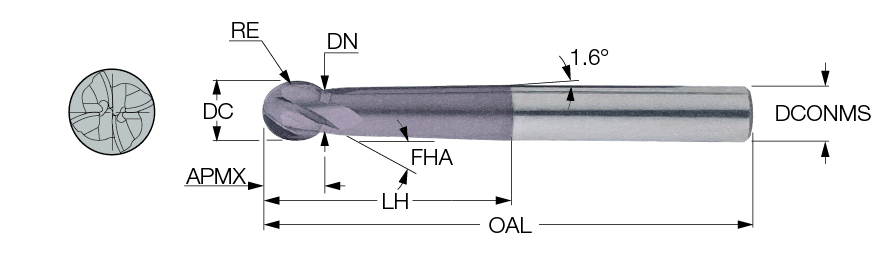

| Cutting Diameter (DC) | 5 mm | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Corner Radius (RE) | 2.5 mm |
| Depth of Cut Maximum (APMX) | 3.9 mm | Neck Diameter (DN) | 4.1 mm |
| Overall Length (OAL) | 80 mm | Body Half Taper Angle (BHTA) | 1.6 Degrees |
| Cutting Edge Material | Carbide | Grade | IC903 |
| Coating | AlTiN | Tool Type | Solid ball nose |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| Usable Length (LU) | 38 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
Product Features
| Family Description | 4 flute, 30° helix spherical long solid carbide ball nose endmills for materials up to 65 HRC. | FamilyName | ESB-A4 |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
0.0300
Name
Ballnose End Mills
FamilyName
ESB-A4
BrandName
Iscar
