EB-A2 02-04/06/1.5C06M60 IC903

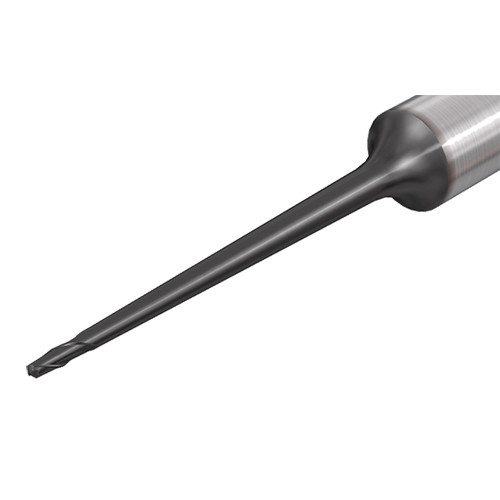

2 tapered flutes, 30° helix solid carbide ball nose endmills with relieved necks for materials up to 65 HRC.

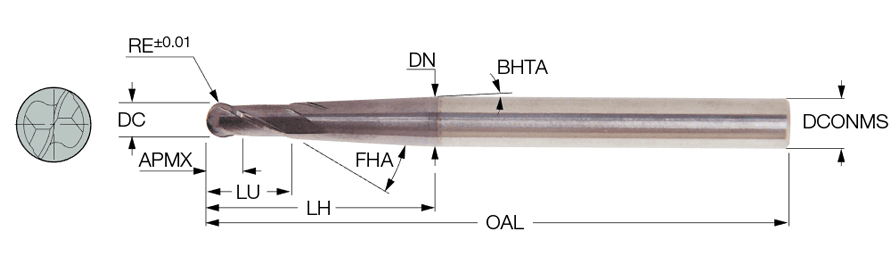

| Cutting Diameter (DC) | 2 mm | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Corner Radius (RE) | 1 mm |
| Depth of Cut Maximum (APMX) | 4 mm | Neck Diameter (DN) | 2.9 mm |
| Overall Length (OAL) | 60 mm | Body Half Taper Angle (BHTA) | 1.5 Degrees |
| Cutting Edge Material | Carbide | Grade | IC903 |
| Coating | AlTiN | Tool Type | Solid ball nose |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| Usable Length (LU) | 6 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | M |
Product Features
| Family Description | 2 tapered flutes, 30° helix solid carbide ball nose endmills with relieved necks for materials up to 65 HRC. | FamilyName | EB-A2 (tapered flute & neck) |
| COO | China | BrandName | Iscar |
Shipping Info
Weight per item
0.0350
Name
Ballnose End Mills
FamilyName
EB-A2 (tapered flute & neck)
BrandName
Iscar
