EBSI-A-4 500-562-C500 IC900

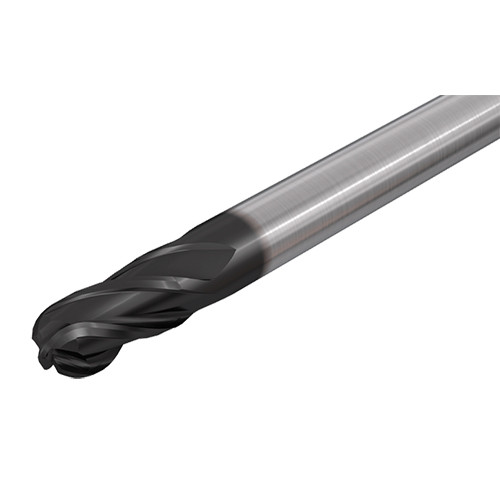

4 flute, 30° helix, short solid carbide ball nose endmills.

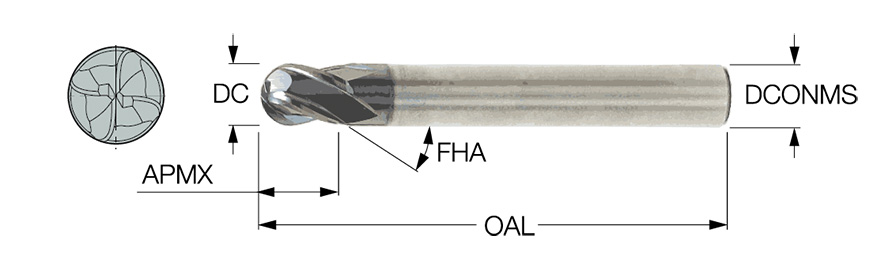

| Cutting Diameter (DC) | 1/2″ | Application | | Profiling | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 1/4″ |
| Depth of Cut Maximum (APMX) | 0.562″ | Grade | IC900 |
| Overall Length (OAL) | 3″ | Tool Type | Solid ball nose |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Body Material | Carbide |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.5″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
Product Features
| Family Description | 4 flute, 30° helix, short solid carbide ball nose endmills. | FamilyName | EBSI-A-4 |
| Remarks | Short and stable design for profiling (finishing). | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2844
Name
Ballnose End Mills
FamilyName
EBSI-A-4
BrandName
Iscar
