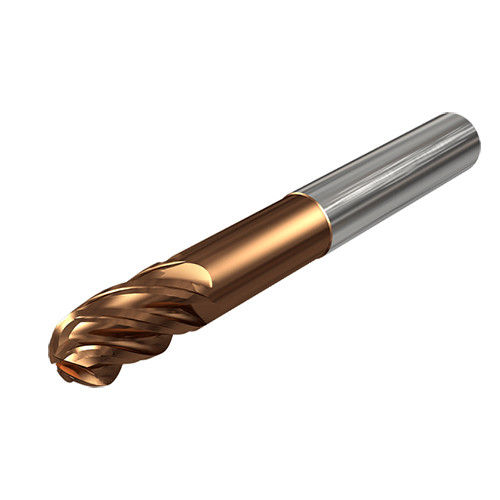

EBI-5 .5-1.25CVF3 IC608
5 flute, ball nose endmills with and without relieved necks

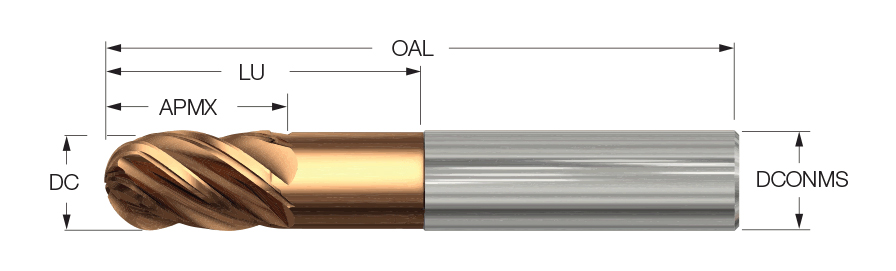

| Cutting Diameter (DC) | 1/2″ | Application | | Helical Interpolation | Plunging & Recessing | Profiling | Rampdown | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Corner Radius (RE) | 1/4″ |
| Depth of Cut Maximum (APMX) | 1-1/4″ | Grade | IC608 |
| Overall Length (OAL) | 3″ | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiCrSiN | Body Material | Carbide |
| Flute Count (NOF) | 5 | Decimal Equivalent | 0.5″ |
| Shank Type | Round | Measurement Type | Inch |
| Usable Length (LU) | 1-1/4″ | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Unit | I |
Product Features
| Family Description | 5 flute, ball nose endmills with and without relieved necks | FamilyName | EBI-5-VF |
| Remarks | Each item is also available with a Weldon shank. Substitute a W in place of the C in the listed designations (example: EBI-5 .375-1.CVF2.5 = cylindrical type; ECI-5 .375-1.WVF2.5 = Weldon type) | BrandName | Iscar |
| COO | USA |
Shipping Info
Name
Ballnose End Mills
FamilyName
EBI-5-VF
BrandName
Iscar
