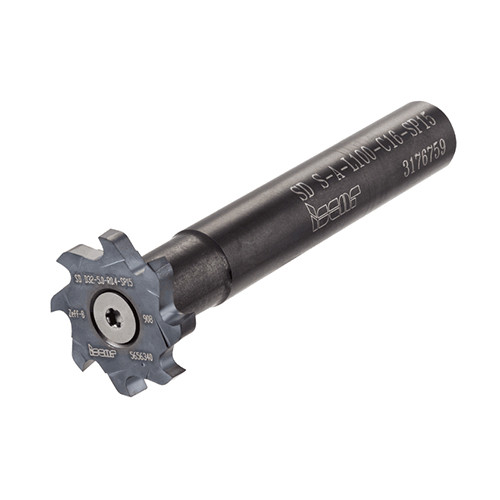

SD S-A-L100-C16 SP13
Stepped cylindrical shanks for interchangeable solid carbide milling heads.
| Connection Thread Nominal Size Workpiece Side (THSZWS) | M4x0.5 | Body Length (LB) | 13 mm |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Overall Length (OAL) | 104 mm | Body Material | Steel |
| Body Length Maximum (LBX) | 16.6 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Tool Type | Cylindrical Shanks | Unit | M |
| Body Diameter (BD) | 13 mm |
Product Features
| Family Description | Stepped cylindrical shanks for interchangeable solid carbide milling heads. | FamilyName | SD S-A-SP |
| Remarks | Apply lubricant to the clamping screw | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2570
Name
Solid End Mill Shanks
FamilyName
SD S-A-SP
BrandName
Iscar
