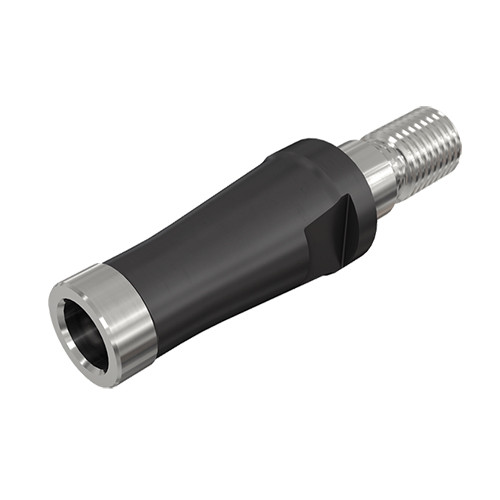

CAB M10M10-C
Reducers and extensions with coolant holes for the modular FLEX-FIT system.

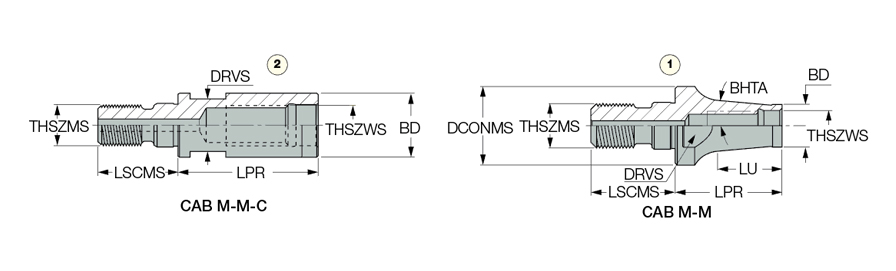

| Connection Thread Nominal Size Workpiece Side (THSZWS) | M10 | Connection Thread Nominal Size Machine Side (THSZMS) | M10 |
| Overall Length (OAL) | 35 mm | Drive Size (DRVS) | 15 mm |
| Clamping Length Machine Side (LSCMS) | 20 mm | Measurement Type | Metric |
| Tool Type | Unique Adapter Milling System | Body Material | Steel |
| Body Diameter (BD) | 18 mm | Unit | M |
Product Features
| Family Description | Reducers and extensions with coolant holes for the modular FLEX-FIT system. | FamilyName | CAB M-M (FLEX-FIT) |
| Remarks | Before mounting the FLEX-FIT adaptation, clean the mating surfaces and threads. Tighten to eliminate gaps, using the torque value from TQ_3. For adaptation, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0720
Name
Solid End Mill Shanks
FamilyName
CAB M-M (FLEX-FIT)
BrandName
Iscar
