MM S-B-H025-ER32-T06

Name: MM S-B-H025-ER32-T06
Brand: MULTIMASTER
SKU: ISC3103641
Price: 10090.00 INR
Availability: InStock

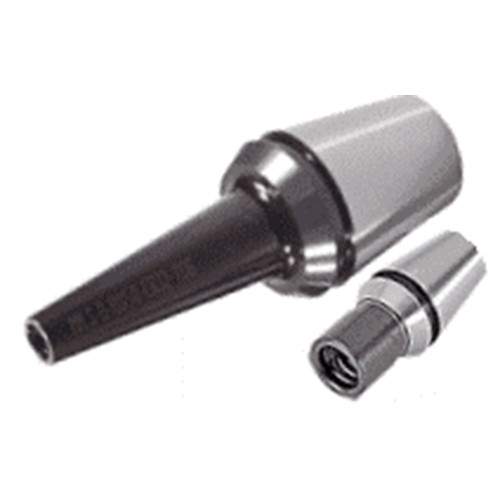

Shanks that mount MULTI-MASTER solid carbide heads with an ER collet adaptation

Item # ISC3103641

Brand: Iscar

Mfr#: 3103641

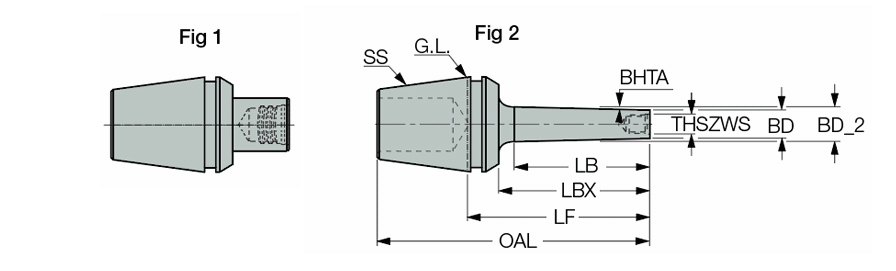

Connection Thread Nominal Size Workpiece Side (THSZWS)	T06	Body Length (LB)	22.3 mm
Overall Length (OAL)	65 mm	Functional Length (LF)	35.1 mm
Shank Size (SS)	ER32	Measurement Type	Metric
Body Length Maximum (LBX)	25 mm	Body Material	Steel
Tool Type	Spring Collets	Unit	M
Body Diameter (BD)	9.6 mm

Product Features

Family Description	Shanks that mount MULTI-MASTER solid carbide heads with an ER collet adaptation	FamilyName	MM S-ER
Remarks	Do not apply lubricant to the threaded connection. For adaptation click on More Info. When a rigid ER collet is assembled in an ER holder, the actual protruding length of the holder becomes shorter by 2.0 mm for ER20 and by 3.0 mm for ER25/ER32	BrandName	Iscar
COO	Israel

Weight per item

0.1670

Name

Solid End Mill Shanks

FamilyName

MM S-ER

BrandName

Iscar
