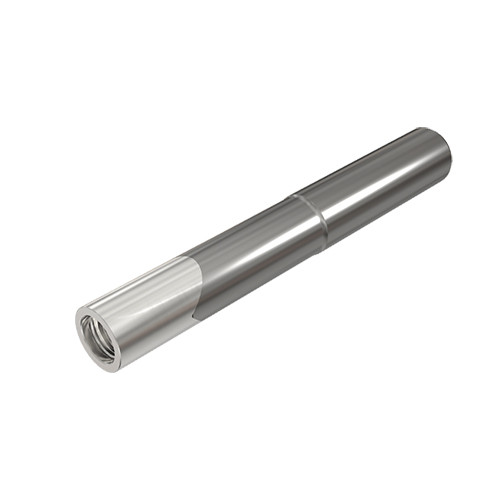

MM S-A-L070-C08-T05-C
MULTI-MASTER, stepped cylindrical shanks for solid carbide milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes.

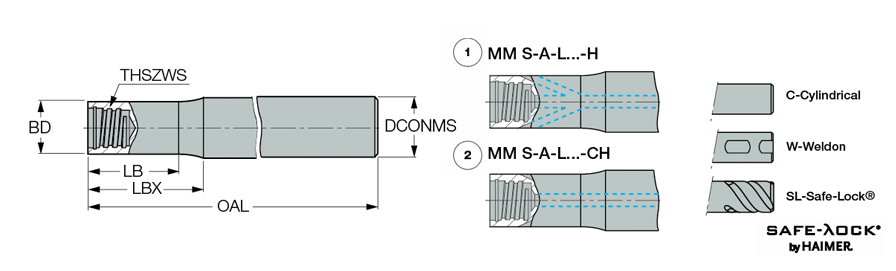

| Connection Thread Nominal Size Workpiece Side (THSZWS) | T05 | Body Length (LB) | 18.6 mm |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Measurement Type | Metric |
| Overall Length (OAL) | 70 mm | Rotational Speed Maximum (RPMX) | 60000 Rev/min |
| Body Length Maximum (LBX) | 20 mm | Body Material | Carbide |
| Tool Type | Cylindrical Shanks | Connection Code Machine Side (CCMS) | Cylindrical |
| Body Diameter (BD) | 7.6 mm | Unit | M |
Product Features
| Family Description | MULTI-MASTER, stepped cylindrical shanks for solid carbide milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes. | FamilyName | MM S-A (stepped shanks) |
| Remarks | For adaptation click on More Info Do not apply lubricant to the threaded connection | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0560
Name
Solid End Mill Shanks
FamilyName
MM S-A (stepped shanks)
BrandName
Iscar
