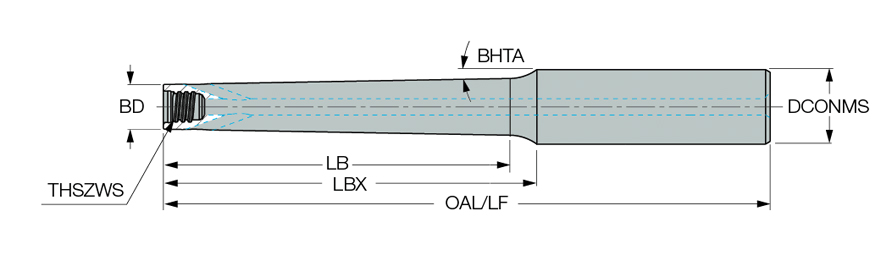

| Connection Diameter Machine Side (DCONMS) | 16 mm | Measurement Type | Metric |
| Shank Type | Round | Body Material | Carbide |
| Body Diameter (BD) | 9.6 mm | Overall Length (OAL) | 170 mm |
| Coolant Supply Property (CSP) | External | Unit | M |
| Tool Type | Cylindrical Shanks |
Product Features
| Family Description | MULTI-MASTER, 89° conical shanks for solid carbide interchangeable milling heads. Available are steel, solid carbide and tungsten shank materials. Tungsten shanks have coolant holes | FamilyName | MM S-D (89° conical shanks) |
| Remarks | For adaptation click on More Info Do not apply lubricant to the threaded connection. Shank Material (Shank m.): S-steel,C-carbide,W-tungsten | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.3460
Name
Extensions
FamilyName
MM S-D (89° conical shanks)
BrandName
Iscar
