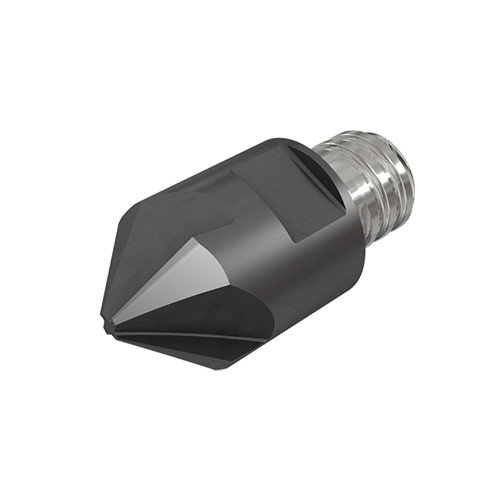

MM ECF120-03/160-6T10 IC908
MULTI-MASTER interchangeable solid carbide heads for chamfering and countersinking
| Application | | Chamfering | Countersinking | Slanted Shoulder & Chamfer | | Grade | IC908 |

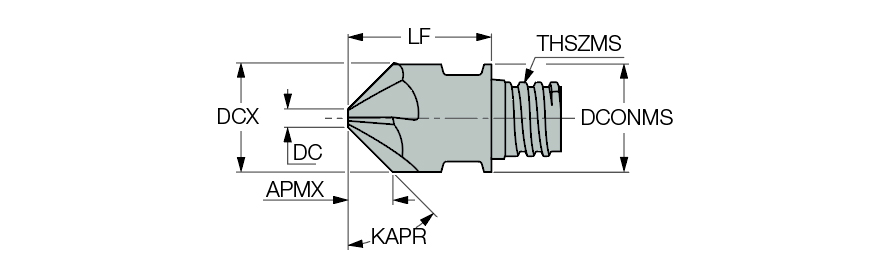

| Cutting Diameter (DC) | 3 mm | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 30 Degrees |
| Flute Count (NOF) | 6 | Measurement Type | Metric |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 16 mm | Tool Type | Solid chamfering endmills |
| Depth of Cut Maximum (APMX) | 3.7 mm | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 20.5 mm | Unit | M |
| Overall Length (OAL) | 32.25 mm |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide heads for chamfering and countersinking | FamilyName | MM ECF |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0150
Name
Solid End Mill Heads
FamilyName
MM ECF
BrandName
Iscar
