‎MM EFF100T2R1.0-6T06H IC903

Name: MM EFF100T2R1.0-6T06H IC903
Brand: MULTIFEEDMASTER
SKU: ISC5668259
Price: 8460.00 INR
Availability: InStock

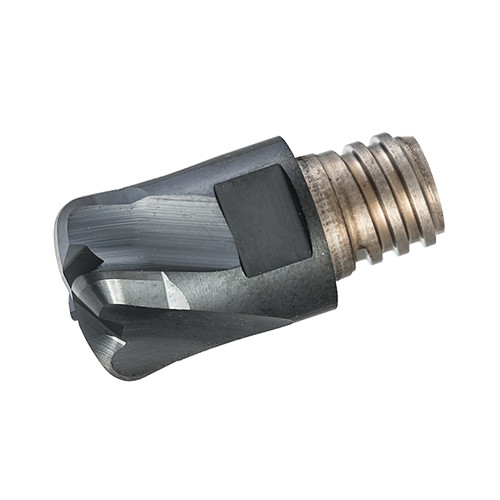

Interchangeable solid carbide FEEDMILL heads with 4 or 6 flute, for milling at very high feed and small D.O.C.

Item # ISC5668259

Brand: Iscar

Mfr#: 5668259

Application	\| Drill Mill \| Fast Feed Milling \| Helical Interpolation \| Plunging & Recessing \| Profiling \| Rampdown \| Shouldering \| Slotting \|	Grade	IC903

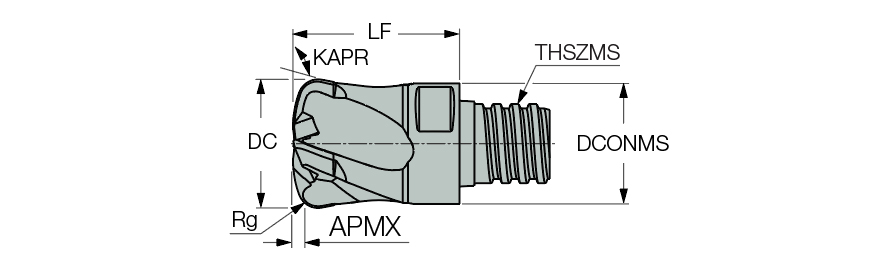

Cutting Diameter (DC)	10 mm	Coating	AlTiN
Applicable Material	\| Steel \| Stainless Steel \| Cast Iron \| Hard Materials \| Super-Alloys / Titanium \|	Tool Cutting Edge Angle (KAPR)	97 Degrees
Flute Count (NOF)	6	Measurement Type	Metric
Corner Radius (RE)	1 mm	Maximum Feed per Tooth (fz(max))	0.47 mm/tooth
Connection Thread Nominal Size Machine Side (THSZMS)	T06	Cutting Edge Material	Carbide
Cutting Diameter Maximum (DCX)	10 mm	Ramping Angle Maximum (RMPX)	3 Degrees
Depth of Cut Maximum (APMX)	0.45 mm	Tool Type	Fast Feed Solid Endmill
Connection Diameter Machine Side (DCONMS)	9.5 mm	Body Material	Carbide
Functional Length (LF)	10 mm	Connection Code Machine Side (CCMS)	MultiMaster
Flute Helix Angle (FHA)	20 Degrees	Minimum Feed per Tooth (fz(min))	0.16 mm/tooth
Overall Length (OAL)	16.65 mm	Unit	M

Product Features

Family Description	Interchangeable solid carbide FEEDMILL heads with 4 or 6 flute, for milling at very high feed and small D.O.C.	FamilyName	MM EFF
Remarks	For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info Do not apply lubricant to the threaded connection Heads with coolant supply are recommended for shouldering operations	BrandName	Iscar
COO	Israel

Weight per item

0.0175

Name

Solid End Mill Heads

FamilyName

MM EFF

BrandName

Iscar
