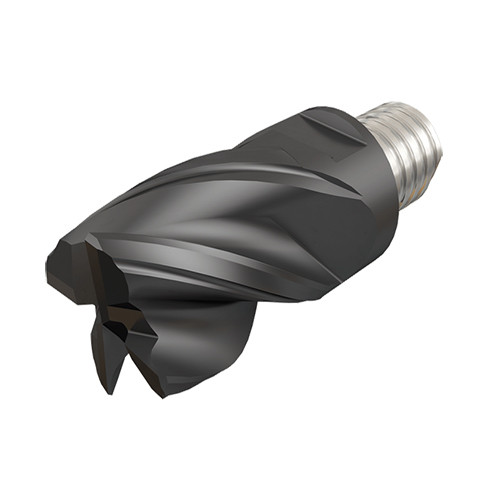

MM EC250E22C6CF-4T15 IC908
MULTI-MASTER interchangeable solid carbide heads with 38° helix and variable pitch for roughing and finishing operations.High material removal rates CHATTERFREE. Used for machining alloyed and stainless steel and exotic materials.
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Coating | TiAlN |
| Cutting Diameter (DC) | 25 mm | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Corner Chamfer Width (CHW) | 0.6 mm |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Connection Thread Nominal Size Machine Side (THSZMS) | T15 | Maximum Feed per Tooth (fz(max)) | 0.17 mm/tooth |
| Cutting Diameter Maximum (DCX) | 25 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 22 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 23.9 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Functional Length (LF) | 37 mm | Body Material | Carbide |
| Flute Helix Angle (FHA) | 38 Degrees | Connection Code Machine Side (CCMS) | MultiMaster |
| Overall Length (OAL) | 54.6 mm | Minimum Feed per Tooth (fz(min)) | 0.06 mm/tooth |
| Grade | IC908 | Unit | M |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide heads with 38° helix and variable pitch for roughing and finishing operations.High material removal rates CHATTERFREE. Used for machining alloyed and stainless steel and exotic materials. | FamilyName | MM EC-CF |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2420
Name
Solid End Mill Heads
FamilyName
MM EC-CF
BrandName
Iscar
