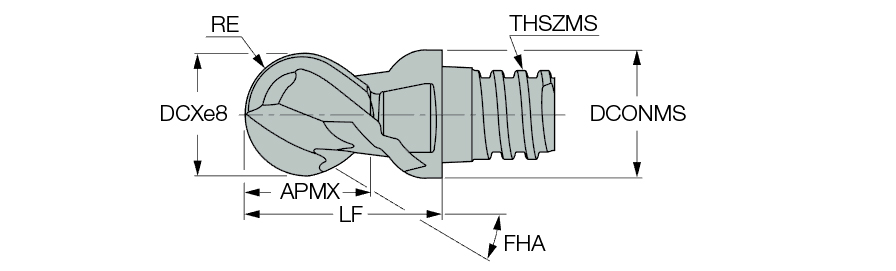

| Application | | Profiling | | Flute Helix Angle (FHA) | 45 Degrees |
| Cutting Diameter (DC) | 3/4″ | Overall Length (OAL) | 1.543″ |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | IC08 |
| Flute Count (NOF) | 2 | Coating | Uncoated |
| Corner Radius (RE) | 0.374″ | Measurement Type | Inch |
| Connection Thread Nominal Size Machine Side (THSZMS) | T12 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 3/4″ | Tool Type | Solid ball nose |
| Depth of Cut Maximum (APMX) | 1/2″ | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.726″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 1″ | Unit | I |
Product Features
| Family Description | Interchangeable 2 flute high precision solid carbide ball nose heads for machining aluminum | FamilyName | MM EBA-2 |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.2161
Name
Solid End Mill Heads
FamilyName
MM EBA-2
BrandName
Iscar
