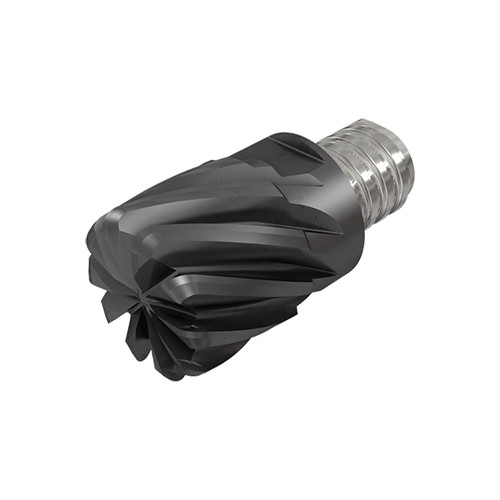

MM EC160A12R1.0-8T10 IC908
Interchangeable 8, 10 flute 30°, 45° helix solid carbide endmill heads with corners with different radius
| Application | | Rampdown | Shouldering | | Grade | IC908 |

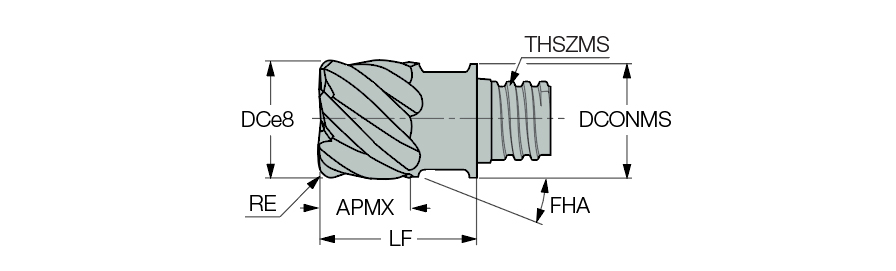

| Cutting Diameter (DC) | 16 mm | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 8 | Measurement Type | Metric |
| Corner Radius (RE) | 1 mm | Maximum Feed per Tooth (fz(max)) | 0.13 mm/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 16 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 12 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Connection Diameter Machine Side (DCONMS) | 15.3 mm | Body Material | Carbide |
| Functional Length (LF) | 20.5 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Flute Helix Angle (FHA) | 30 Degrees | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Overall Length (OAL) | 32.25 mm | Unit | M |
Product Features
| Family Description | Interchangeable 8, 10 flute 30°, 45° helix solid carbide endmill heads with corners with different radius | FamilyName | MM EC-8/10 |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0625
Name
Solid End Mill Heads
FamilyName
MM EC-8/10
BrandName
Iscar
