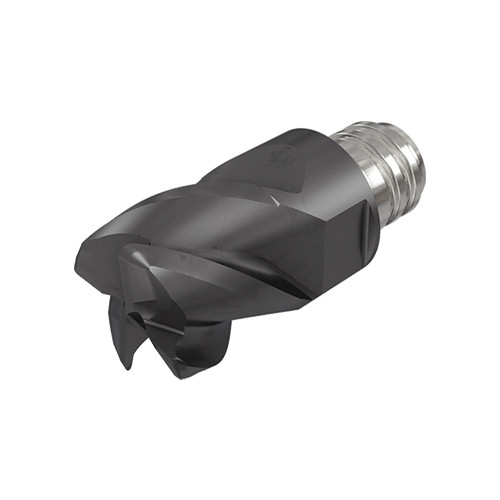

MM EC080B05R000-4T05 IC908
Interchangeable 4 flute solid carbide endmill heads with 30°, 45° helix and various corner radii
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Grade | IC908 |

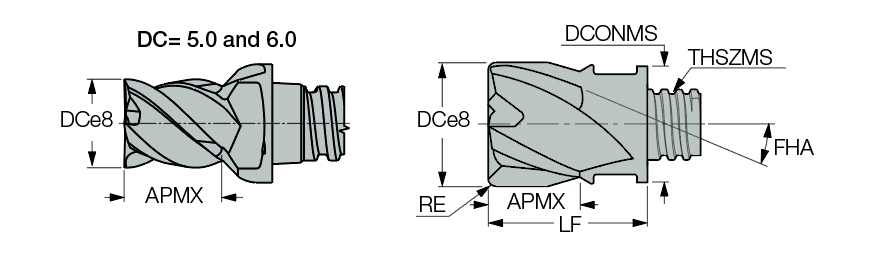

| Cutting Diameter (DC) | 8 mm | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 4 | Measurement Type | Metric |
| Corner Radius (RE) | 0 mm | Maximum Feed per Tooth (fz(max)) | 0.09 mm/tooth |
| Connection Thread Nominal Size Machine Side (THSZMS) | T05 | Cutting Edge Material | Carbide |
| Cutting Diameter Maximum (DCX) | 8 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 5 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Connection Diameter Machine Side (DCONMS) | 7.7 mm | Body Material | Carbide |
| Functional Length (LF) | 10 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Flute Helix Angle (FHA) | 45 Degrees | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Overall Length (OAL) | 17.1 mm | Unit | M |
Product Features
| Family Description | Interchangeable 4 flute solid carbide endmill heads with 30°, 45° helix and various corner radii | FamilyName | MM EC-4 |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0135
Name
Solid End Mill Heads
FamilyName
MM EC-4
BrandName
Iscar
