MM EB.500A37-4T08 IC908

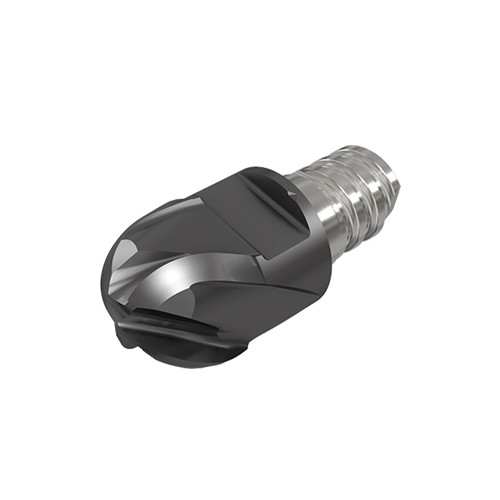

MULTI-MASTER interchangeable solid carbide ball nose milling heads

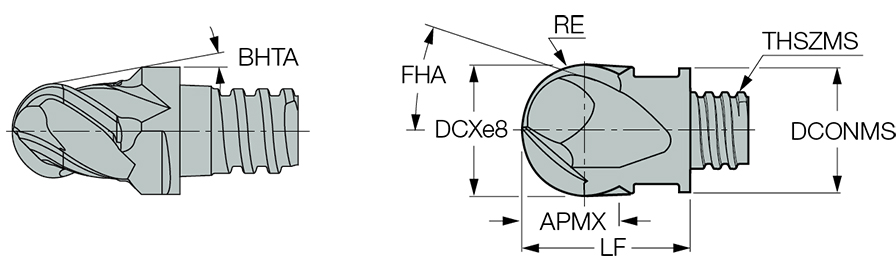

| Application | | Profiling | | Overall Length (OAL) | 0.963″ |
| Cutting Diameter (DC) | 1/2″ | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 4 | Measurement Type | Inch |
| Corner Radius (RE) | 0.0005″ | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Tool Type | Solid ball nose |
| Depth of Cut Maximum (APMX) | 0.374″ | Body Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 0.488″ | Connection Code Machine Side (CCMS) | MultiMaster |
| Functional Length (LF) | 0.65″ | Unit | I |
| Flute Helix Angle (FHA) | 30 Degrees |
Product Features
| Family Description | MULTI-MASTER interchangeable solid carbide ball nose milling heads | FamilyName | MM EB |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0683
Name
Solid End Mill Heads
FamilyName
MM EB
BrandName
Iscar
