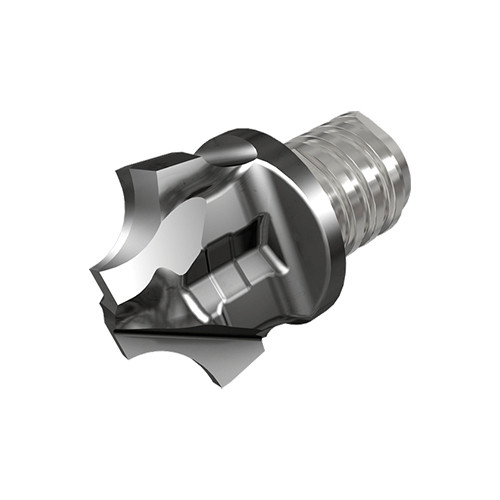

MM HR5.0/188-6.2-2T10 IC908
Interchageable 2 flute solid carbide corner round milling heads

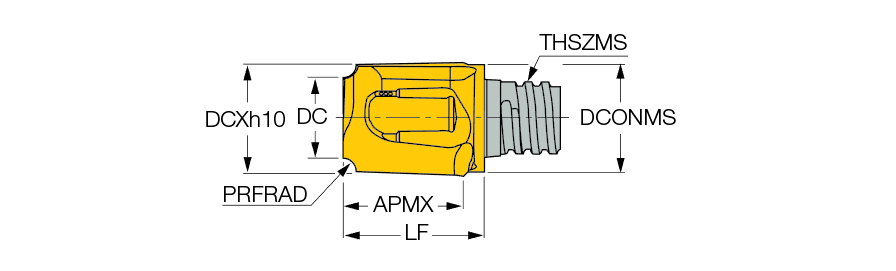

| Application | | Corner Rounding | | Overall Length (OAL) | 30.85 mm |
| Cutting Diameter (DC) | 6.2 mm | Grade | IC908 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Flute Count (NOF) | 2 | Measurement Type | Metric |
| Corner Radius (RE) | 4.88 mm | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T10 | Tool Type | Solid corner rounding endmills |
| Cutting Diameter Maximum (DCX) | 16 mm | Body Material | Carbide |
| Depth of Cut Maximum (APMX) | 15 mm | Connection Code Machine Side (CCMS) | MultiMaster |
| Connection Diameter Machine Side (DCONMS) | 15.2 mm | Unit | M |
| Functional Length (LF) | 19.1 mm |
Product Features
| Family Description | Interchageable 2 flute solid carbide corner round milling heads | FamilyName | MM HR |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0425
Name
Solid End Mill Heads
FamilyName
MM HR
BrandName
Iscar
