SD D25-7.0-R0.4-SP13 IC908
Interchangeable solid carbide T-Slot milling heads.

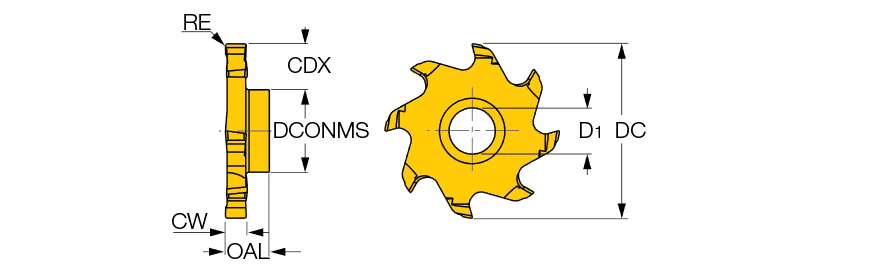

| Application | | Internal Groove Milling | Side Slotting | T Slotting | | Grade | IC908 |
| Cutting Diameter (DC) | 24.7 mm | Coating | TiAlN |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Fixing Hole Diameter (D1) | 7.5 mm |
| Flute Count (NOF) | 6 | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Corner Radius (RE) | 0.4 mm | Measurement Type | Metric |
| Cutting Depth Maximum (CDX) | 5.5 mm | Cutting Edge Material | Carbide |
| Cutting Width (CW) | 7 mm | Tool Type | Solid "T" slot cutters |
| Connection Diameter Machine Side (DCONMS) | 13 mm | Body Material | Carbide |
| Overall Length (OAL) | 8.3 mm | Unit | M |
Product Features
| Family Description | Interchangeable solid carbide T-Slot milling heads. | FamilyName | SD-SP |

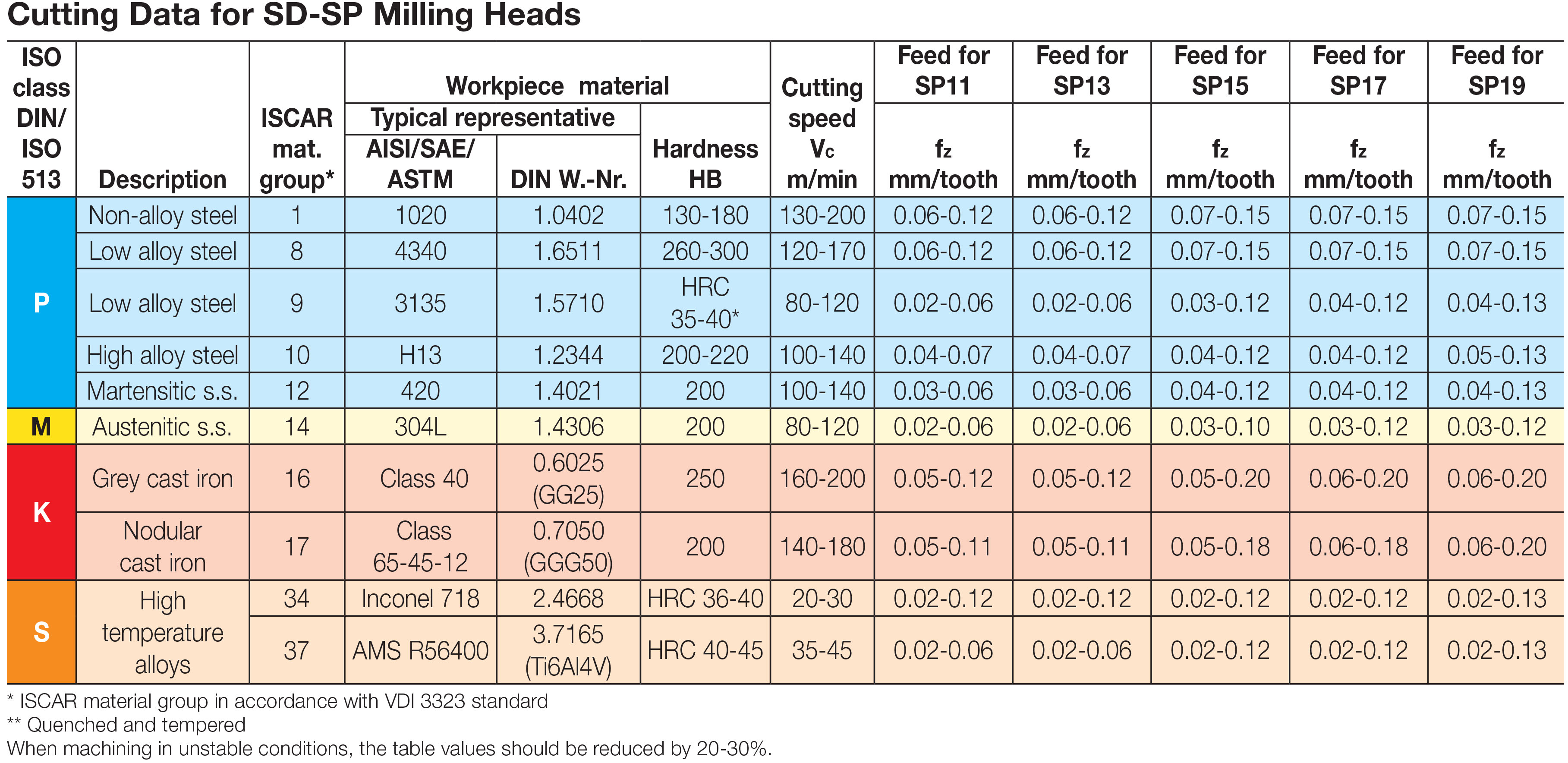

| Remarks | For machining recommendations, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0410
Name
Solid End Mill Heads
FamilyName
SD-SP
BrandName
Iscar
