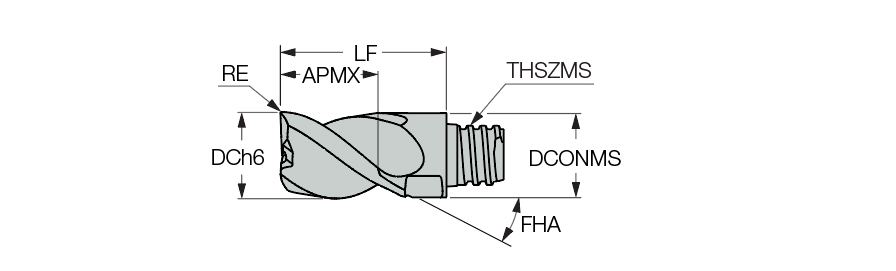

| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Grade | IC08 |
| Cutting Diameter (DC) | 1/2″ | Coating | Uncoated |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Measurement Type | Inch |
| Flute Count (NOF) | 3 | Maximum Feed per Tooth (fz(max)) | 0.0043 ″/tooth |
| Corner Radius (RE) | 0″ | Cutting Edge Material | Carbide |
| Connection Thread Nominal Size Machine Side (THSZMS) | T08 | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 1/2″ | Tool Type | Solid carbide center cutting endmills 90° |
| Connection Diameter Machine Side (DCONMS) | 0.488″ | Body Material | Carbide |
| Functional Length (LF) | 0.906″ | Minimum Feed per Tooth (fz(min)) | 0.0015 ″/tooth |
| Flute Helix Angle (FHA) | 45 Degrees | Unit | I |
| Overall Length (OAL) | 1.219″ |
Product Features

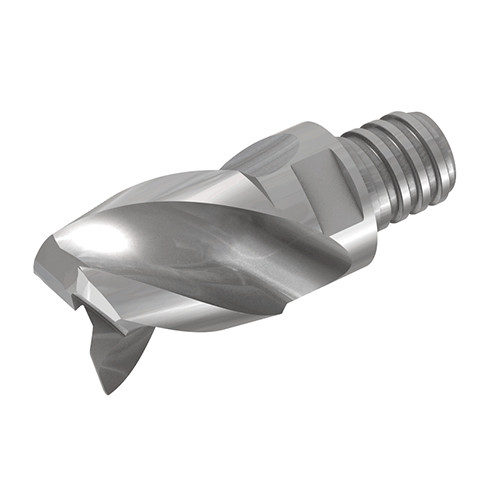

| Family Description | CHATTERFREE, MULTI-MASTER interchangeable solid carbide heads. 3 and 4 flute with 40° different helix, for machining aluminum. Excellent chatter dampening ability. Used for both roughing and finishing | FamilyName | MM EA-CF |
| Remarks | For Clamping keys (to be ordered separately), tightening torques and clamping instructions, click on More Info. Do not apply lubricant to the threaded connection. | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0838
Name
Solid End Mill Heads
FamilyName
MM EA-CF
BrandName
Iscar
