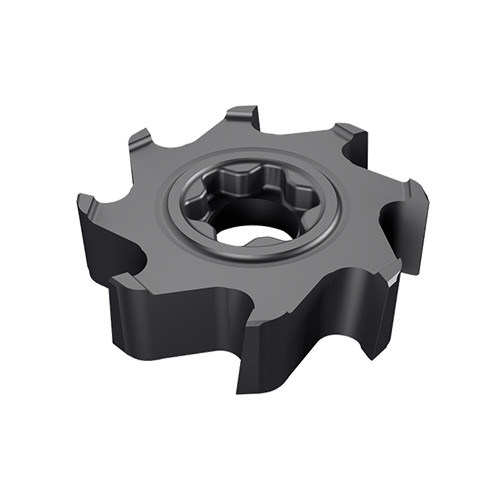

SD FM D32-8-R0.4-SP15 IC908
Interchangeable solid carbide face milling heads.
| Application | | Facing | Shouldering | | Coating | TiAlN |

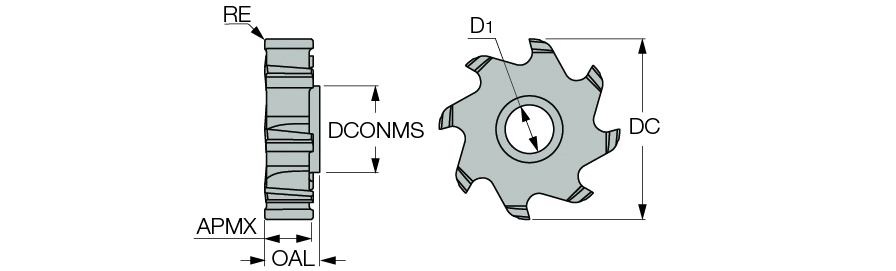

| Cutting Diameter (DC) | 31.25 mm | Fixing Hole Diameter (D1) | 8.4 mm |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Flute Count (NOF) | 8 | Measurement Type | Metric |
| Corner Radius (RE) | 0.4 mm | Maximum Feed per Tooth (fz(max)) | 0.15 mm/tooth |
| Depth of Cut Maximum (APMX) | 8 mm | Cutting Edge Material | Carbide |
| Connection Diameter Machine Side (DCONMS) | 15 mm | Body Material | Carbide |
| Functional Length (LF) | 8 mm | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Overall Length (OAL) | 8 mm | Unit | M |
| Grade | IC908 |
Product Features
| Family Description | Interchangeable solid carbide face milling heads. | FamilyName | SD FM |
| Remarks | For machining recommendations, click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.0630
Name
Solid End Mill Heads
FamilyName
SD FM
BrandName
Iscar
