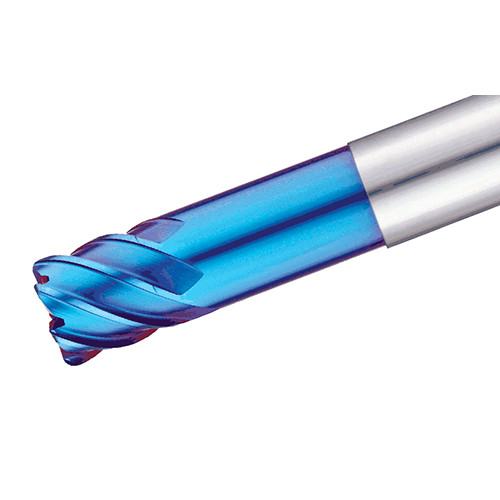

EC-B6 08-19C08R.5H90 IC702
6 flute, 45° helix extra long solid carbide endmills. Used for finishing hard materials up to 65 HRC.
| Cutting Diameter (DC) | 8 mm | Ramping Angle Maximum (RMPX) | 0 Degrees |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Grade | IC702 |
| Depth of Cut Maximum (APMX) | 19 mm | Neck Diameter (DN) | 8 mm |
| Overall Length (OAL) | 90 mm | Tool Type | Solid carbide non center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.09 mm/tooth |
| Coating | AlTiCrSiN | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Count (NOF) | 6 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 45 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 19 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Steel | Hard Materials | | Cutting Diameter Tolerance | e8 |
| Application | | Shouldering | Slotting | | Unit | M |
| Corner Radius (RE) | 0.5 mm |
Product Features
| Family Description | 6 flute, 45° helix extra long solid carbide endmills. Used for finishing hard materials up to 65 HRC. | FamilyName | EC-B6-H |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
0.0660
Name
Square & Corner Radius End Mills
FamilyName
EC-B6-H
BrandName
Iscar
