Helical Interpolation Rampdown Shouldering Slotting
See all 14 in this Product Family

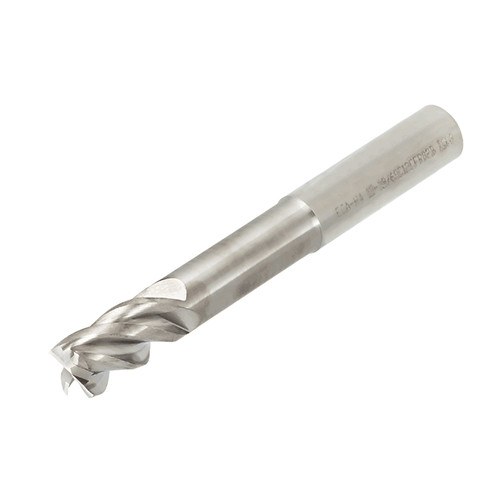

‎ECAI-H4R 750-1.2/3.7C01CF IC08

‎CHATTERFREE, 4 flute solid carbide endmills with 39-41 different helix, 3, 4 and 5xD neck relief for machining aluminum. Excellent chatter dampening ability. Used for both roughing and finishing.
SOLIDMILL Premium CHATTERFREE
Item # ISC5667862
Brand: Iscar
Mfr#: 5667862
Quantity Available
loading...
Cutting Diameter (DC) 3/4″ Grade IC08
Connection Diameter Machine Side (DCONMS) 3/4″ Neck Diameter (DN) 0.734″
Depth of Cut Maximum (APMX) 1.2″ Body Half Taper Angle (BHTA) 15 Degrees
Overall Length (OAL) 6″ Tool Type Solid carbide center cutting endmills 90°
Cutting Edge Material Carbide Maximum Feed per Tooth (fz(max)) 0.0055 ″/tooth
Coating Uncoated Minimum Feed per Tooth (fz(min)) 0.0031 ″/tooth
Flute Count (NOF) 4 Coolant Supply Property (CSP) External
Flute Helix Angle (FHA) 40 Degrees Body Material Carbide
Shank Type Round Decimal Equivalent 0.75″
End Shape Corner Radius Measurement Type Inch
Usable Length (LU) 3.7″ Connection Code Machine Side (CCMS) Cylindrical
Applicable Material | Aluminum / Non-Ferrous Materials | Shank Diameter Tolerance (TCDMM) h6
Application | Helical Interpolation | Rampdown | Shouldering | Slotting | Cutting Diameter Tolerance h6
Corner Radius (RE) 0.01″ Unit I
Ramping Angle Maximum (RMPX) 5 Degrees
‎ECAI-H4R 750-1.2/3.7C01CF IC08

Product Features

Family Description ‎CHATTERFREE, 4 flute solid carbide endmills with 39-41 different helix, 3, 4 and 5xD neck relief for machining aluminum. Excellent chatter dampening ability. Used for both roughing and finishing. FamilyName ECAI-H4R-CF
COO Israel BrandName Iscar

Shipping Info

Weight per item
1.3051
Name
Square & Corner Radius End Mills
FamilyName
ECAI-H4R-CF
BrandName
Iscar
