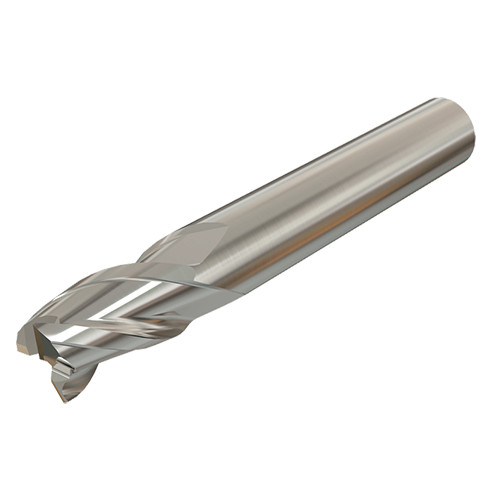

EC-A3 008-02C03E38 IC900
Economical type 3 flute, 30° and 38° helix, center cutting, short and medium length solid carbide endmills.

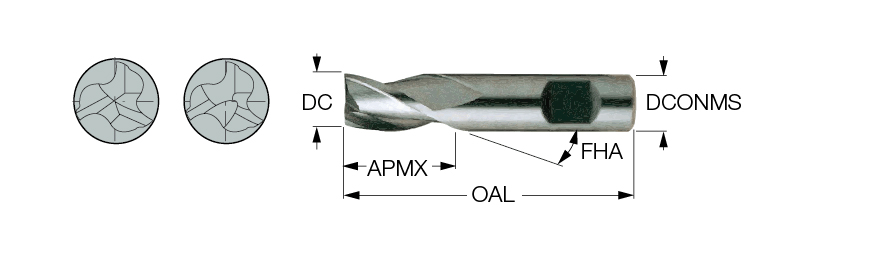

| Cutting Diameter (DC) | 0.8 mm | Grade | IC900 |
| Connection Diameter Machine Side (DCONMS) | 3 mm | Neck Diameter (DN) | 0.8 mm |
| Depth of Cut Maximum (APMX) | 2 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Overall Length (OAL) | 38 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.01 mm/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.007 mm/tooth |
| Flute Count (NOF) | 3 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Square | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 3.25 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | h10 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Unit | M |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
Product Features
| Family Description | Economical type 3 flute, 30° and 38° helix, center cutting, short and medium length solid carbide endmills. | FamilyName | EC-A3/E3 (economical-short/medium) |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.0110
Name
Square & Corner Radius End Mills
FamilyName
EC-A3/E3 (economical-short/medium)
BrandName
Iscar
