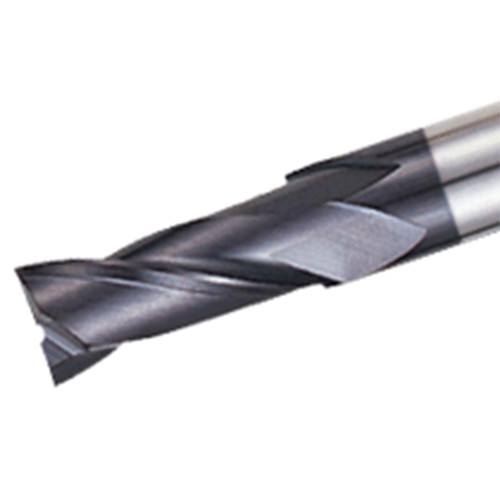

EC-A2 150-26C16-90 IC903
2 flute, 30° helix medium length solid carbide endmills for hard materials up to 65 HRC.

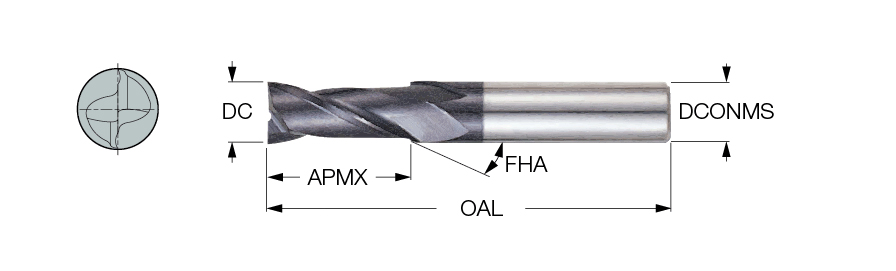

| Cutting Diameter (DC) | 15 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 16 mm | Grade | IC903 |
| Depth of Cut Maximum (APMX) | 26 mm | Neck Diameter (DN) | 15 mm |
| Overall Length (OAL) | 90 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.12 mm/tooth |
| Flute Count (NOF) | 2 | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Flute Helix Angle (FHA) | 30 Degrees | Coolant Supply Property (CSP) | External |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
| Usable Length (LU) | 32 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Diameter Tolerance | e8 |
| Corner Radius (RE) | 0 mm | Unit | M |
Product Features
| Family Description | 2 flute, 30° helix medium length solid carbide endmills for hard materials up to 65 HRC. | FamilyName | EC-A2 (medium length) |
| COO | Korea | BrandName | Iscar |
Shipping Info
Weight per item
0.2190
Name
Square & Corner Radius End Mills
FamilyName
EC-A2 (medium length)
BrandName
Iscar
