EC-A2 055-16C055E50 IC08

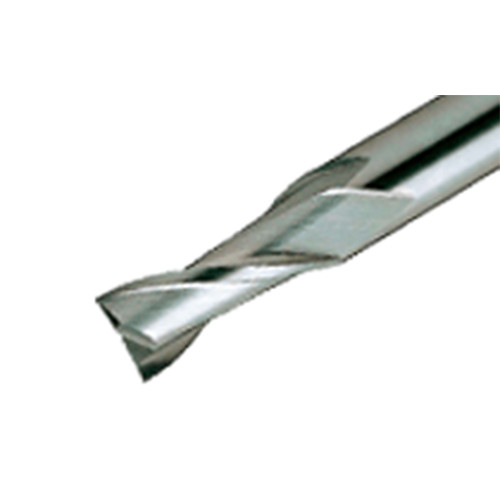

Economical type 2 flute, 30° helix center cutting, short, medium, and extra long length solid carbide endmills.

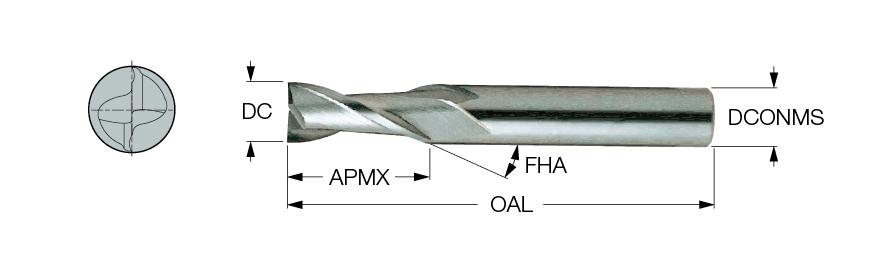

| Cutting Diameter (DC) | 5.5 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 5.5 mm | Grade | IC08 |
| Depth of Cut Maximum (APMX) | 16 mm | Body Half Taper Angle (BHTA) | 0 Degrees |
| Overall Length (OAL) | 50 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.06 mm/tooth |
| Coating | Uncoated | Minimum Feed per Tooth (fz(min)) | 0.02 mm/tooth |
| Flute Count (NOF) | 2 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 30 Degrees | Body Material | Carbide |
| Shank Type | Round | Measurement Type | Metric |
| End Shape | Square | Connection Code Machine Side (CCMS) | Cylindrical |
| Usable Length (LU) | 16 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Cutting Diameter Tolerance | h10 |
| Application | | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Unit | M |
Product Features
| Family Description | Economical type 2 flute, 30° helix center cutting, short, medium, and extra long length solid carbide endmills. | FamilyName | EC-A2 (economical-short/medium/extra long) |
| COO | China | BrandName | Iscar |
Shipping Info
Weight per item
0.0180
Name
Square & Corner Radius End Mills
FamilyName
EC-A2 (economical-short/medium/extra long)
BrandName
Iscar
