ECAP-H320-30/100C20CFR02C IC08

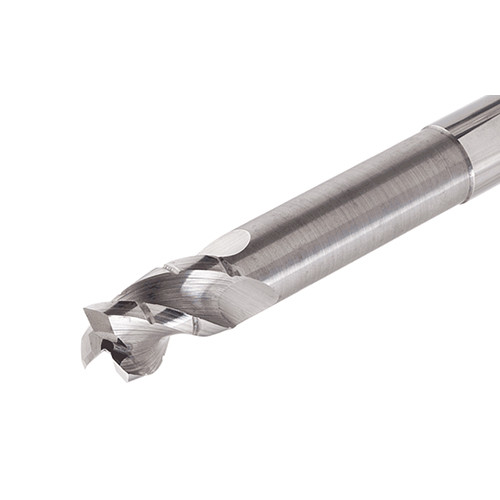

3 flute, 39-41° different helix solid carbide endmills with chip splitters, neck relief and central coolant holes. Excellent chip evacuation, chatter free and reduced power consumption, for aluminum roughing applications.

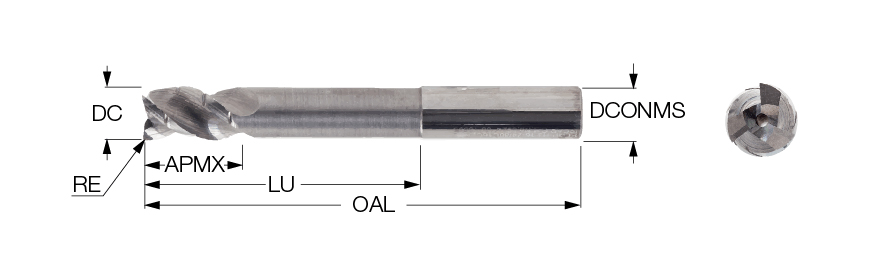

| Cutting Diameter (DC) | 20 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Connection Diameter Machine Side (DCONMS) | 20 mm | Grade | IC08 |
| Depth of Cut Maximum (APMX) | 30 mm | Neck Diameter (DN) | 19.2 mm |
| Overall Length (OAL) | 150 mm | Body Half Taper Angle (BHTA) | 15 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Coating | Uncoated | Maximum Feed per Tooth (fz(max)) | 0.14 mm/tooth |
| Flute Count (NOF) | 3 | Minimum Feed per Tooth (fz(min)) | 0.05 mm/tooth |
| Flute Helix Angle (FHA) | 40 Degrees | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Body Material | Carbide |
| End Shape | Corner Radius | Measurement Type | Metric |
| Usable Length (LU) | 100 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Helical Interpolation | Rampdown | Shouldering | Slotting | | Cutting Diameter Tolerance | h6 |
| Corner Radius (RE) | 0.2 mm | Unit | M |
Product Features
| Family Description | 3 flute, 39-41° different helix solid carbide endmills with chip splitters, neck relief and central coolant holes. Excellent chip evacuation, chatter free and reduced power consumption, for aluminum roughing applications. | FamilyName | ECAP-H3-CF |
| COO | Israel | BrandName | Iscar |
Shipping Info
Weight per item
0.6100
Name
Square & Corner Radius End Mills
FamilyName
ECAP-H3-CF
BrandName
Iscar
