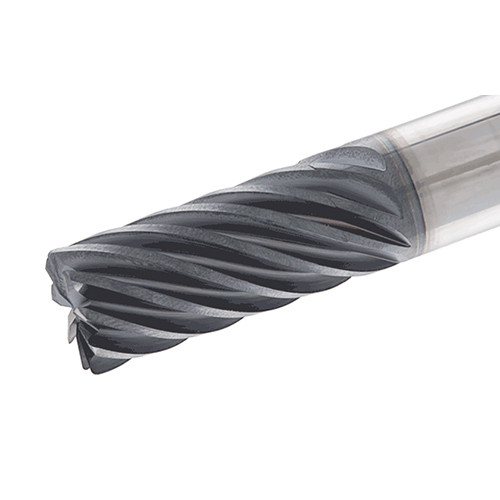

ECK-H7 12-26W12CFR0.6T83 IC900
7 and 9 flute endmills with different helix and variable pitch for chatter damping with assorted radii. Used for high titanium removal rates.

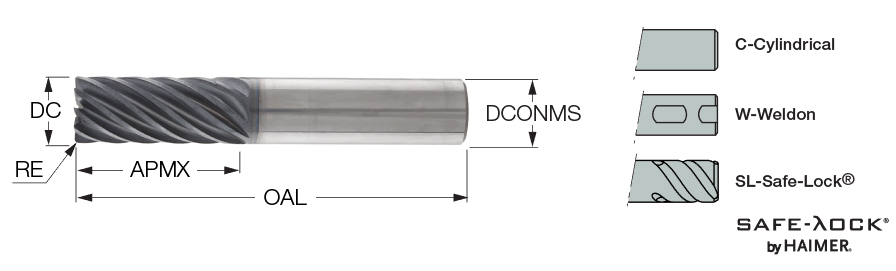

| Cutting Diameter (DC) | 12 mm | Corner Radius (RE) | 0.6 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Ramping Angle Maximum (RMPX) | 5 Degrees |
| Depth of Cut Maximum (APMX) | 26 mm | Grade | IC900 |
| Overall Length (OAL) | 83 mm | Tool Type | Solid carbide center cutting endmills 90° |
| Cutting Edge Material | Carbide | Maximum Feed per Tooth (fz(max)) | 0.11 mm/tooth |
| Coating | AlTiN | Minimum Feed per Tooth (fz(min)) | 0.04 mm/tooth |
| Flute Count (NOF) | 7 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 37 Degrees | Body Material | Carbide |
| Shank Type | Weldon | Measurement Type | Metric |
| End Shape | Corner Radius | Connection Code Machine Side (CCMS) | Weldon |
| Usable Length (LU) | 26 mm | Shank Diameter Tolerance (TCDMM) | h6 |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Cutting Diameter Tolerance | e8 |
| Application | | Shouldering | | Unit | M |
Product Features
| Family Description | 7 and 9 flute endmills with different helix and variable pitch for chatter damping with assorted radii. Used for high titanium removal rates. | FamilyName | ECK-H7/9-CFR |

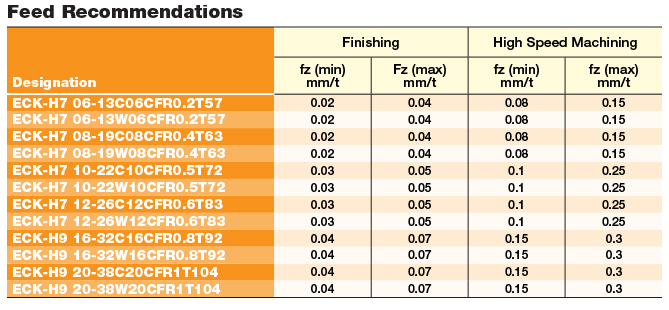

| Remarks | Enables processing at a radial width of cut (AE) of up to 0.10xD For feedrecommendations click on More Info | BrandName | Iscar |
| COO | Israel |
Shipping Info
Weight per item
0.1280
Name
Square & Corner Radius End Mills
FamilyName
ECK-H7/9-CFR
BrandName
Iscar
